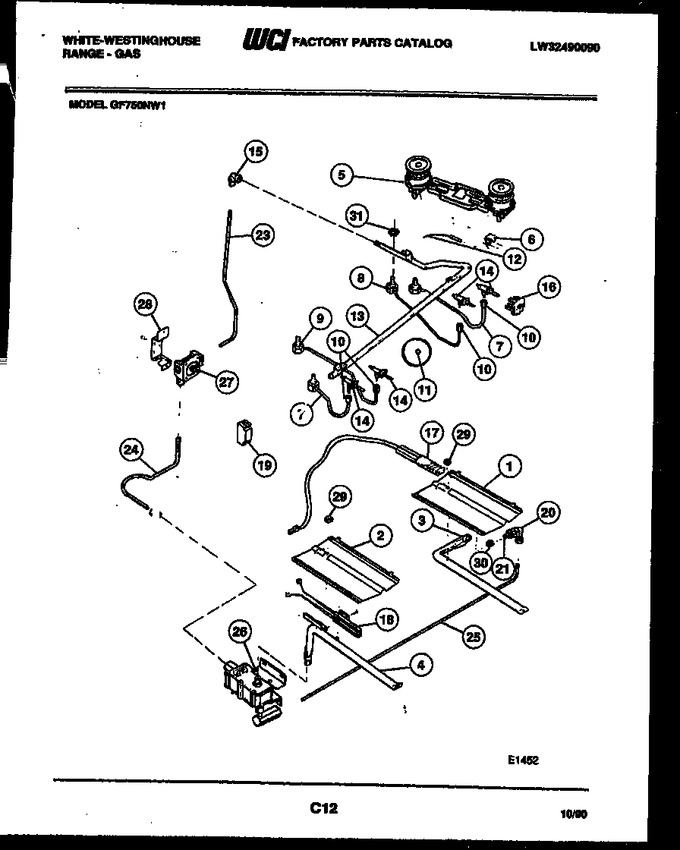

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cooktop Parts
03 - Door Parts
04 - Burner, Manifold And Gas Control
05 - Broiler Drawer Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007974 | Pressure Regulator |
|
$ 309.02 | |||||
| 2 | 3131056 | Manifold Pipe |
|
- | |||||
| 3 | 5303131057 | Valve-top Burner |
|
- | |||||
| 4 | 5308013927 | Thermostat |
|
- | |||||
| 5 | 5303131061 | Baffle-oven Burner |
|
- | |||||
| 6 | 5308013855 | Burner Oven Pilot |
|
- | |||||
| 7 | 5303131063 | Tube - Oven Feed |
|
- | |||||
| 8 | 5303131064 | Loxit-nut |
|
- | |||||
| 9 | 5308013942 | Valve-safety |
|
- | |||||
| 10 | 3131069 | Support - Oven Valve |
|
- | |||||
| 11 | 3205598 | Pilot |
|
- | |||||
| 12 | 3131072 | Nut-compr/sleeve |
|
- | |||||
| 13 | 5303009490 | Tube-oven Pilot |
|
- | |||||
| 14 | 3131074 | Loxit Nut-3/16 |
|
- | |||||
| 15 | 5303131075 | Pilot - Top Burner |
|
- | |||||
| 16 | 5303016870 | Support-top Burner |
|
- | |||||
| 17 | 3131078 | Shield-pilot |
|
- | |||||
| 18 | 5303131079 | Burner-top Rear (2) |
|
$ 129.78 | |||||
| 19 | 5303131080 | Burner-top Front (2) |
|
$ 76.13 | |||||
| 18A | 5300009126 | Clip |
|
- |
