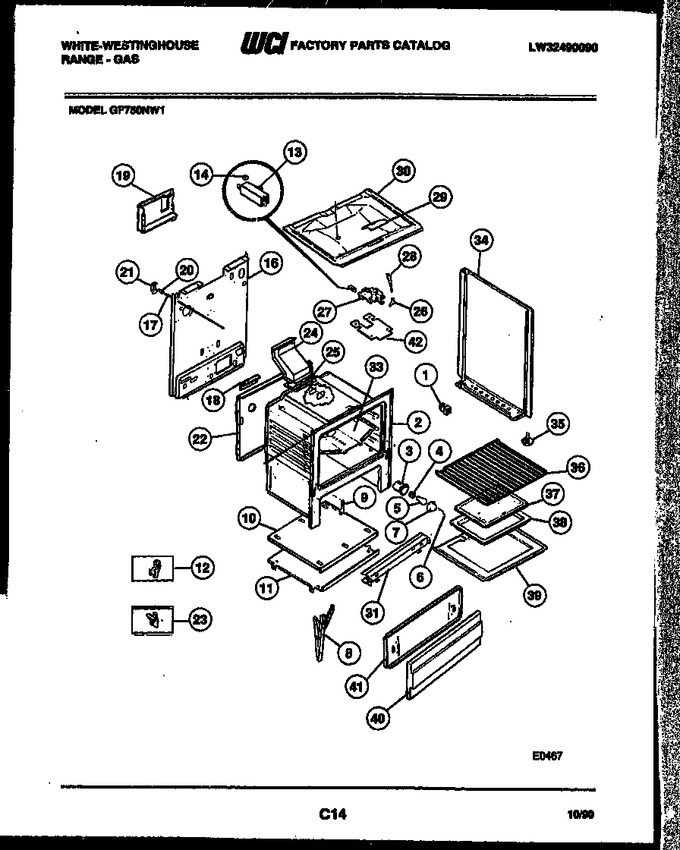

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-maintop |
|
- | |||||
| 2 | 3051063 | Grommet Plastic |
|
- | |||||
| 3 | 5303051061 | Bodyside - White Lh/rh |
|
- | |||||
| 4 | 3051067 | Support-control Pnl |
|
- | |||||
| 5 | 3018284 | Liner - Side Rh |
|
- | |||||
| 6 | 3203621 | Frame-front |
|
- | |||||
| 7 | 5303204672 | Hinge-door Lh |
|
- | |||||
| 8 | 5303051069 | Seal Oven Door |
|
- | |||||
| 9 | 5303051079 | Spring-oven Door |
|
- | |||||
| 10 | 3016158 | Rack-oven |
|
- | |||||
| 11 | 3018697 | Oven-bottom |
|
- | |||||
| 12 | 3131038 | Support-oven Btm |
|
- | |||||
| 13 | 5303051080 | Leveling Leg (4) |
|
- | |||||
| 14 | 5308068047 | Rail-base (2) |
|
- | |||||
| 15 | 3131041 | Bracket-installation |
|
- | |||||
| 16 | 3131042 | Main Bottom |
|
- | |||||
| 17 | 3131043 | Insulation Wrapper |
|
- | |||||
| 18 | 3131044 | Insulation |
|
- | |||||
| 19 | 3131045 | Back-main |
|
- | |||||
| 20 | 3051096 | Support,oven Rear |
|
- | |||||
| 21 | 3017173 | Vent Box |
|
- | |||||
| 22 | 3017573 | Burner Box Bottom |
|
- | |||||
| 23 | 5303131053 | Shield-heat Rh |
|
- | |||||
| *36235 | 3131791 | Clip-bodyside Corner |
|
$ 19.01 | |||||
| 23A | 5303131054 | Shield-heat Lh |
|
- | |||||
| 5A | 3018285 | Liner - Side Lh |
|
- | |||||
| 5B | 3018700 | Liner-top |
|
- | |||||
| 5C | 3018699 | Liner-back |
|
- | |||||
| 7A | 5303204670 | Hinge-door Rh |
|
- |
