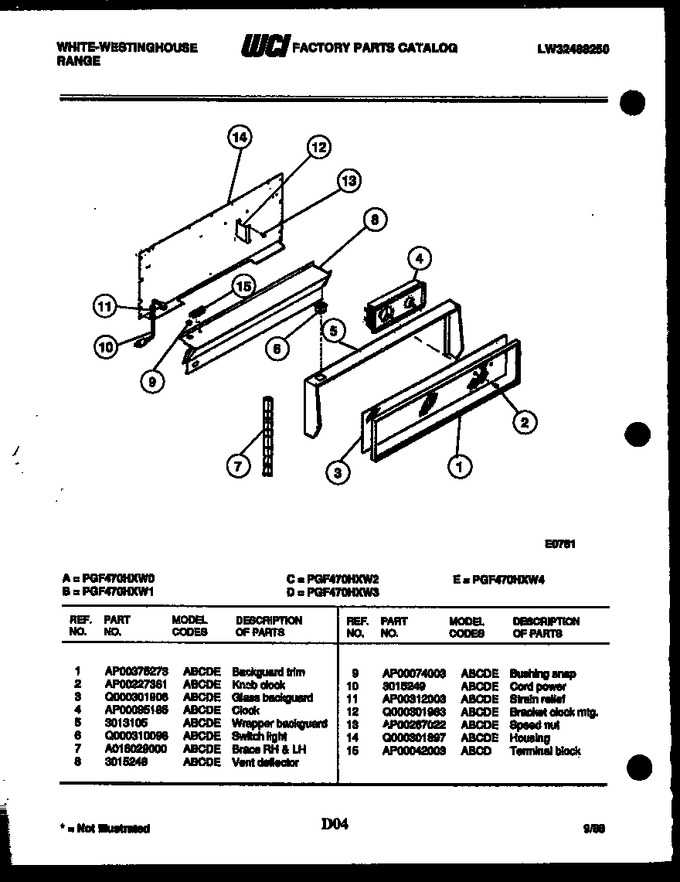

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AP00375273 | Backguard Trim |
|
- | |||||
| 2 | AP00227361 | Knob Clock |
|
- | |||||
| 3 | Q000301906 | Glass Backguard |
|
- | |||||
| 4 | AP00095185 | Clock |
|
- | |||||
| 5 | 3013105 | Wrapper Backguard |
|
- | |||||
| 6 | Q000310098 | Switch Light |
|
- | |||||
| 7 | A016029000 | Brace Rh & Lh |
|
- | |||||
| 8 | 3015248 | Vent - Deflector |
|
- | |||||
| 9 | AP00074003 | Bushing-snap |
|
- | |||||
| 10 | 3015249 | Cord - Power |
|
- | |||||
| 11 | AP00312003 | Strain Relief |
|
- | |||||
| 12 | Q000301963 | Bracket-clock Mtg |
|
- | |||||
| 13 | AP00267022 | Speed Nut |
|
- | |||||
| 14 | Q000301897 | Housing |
|
- | |||||
| 15 | AP00042003 | Terminal Block |
|
- |
