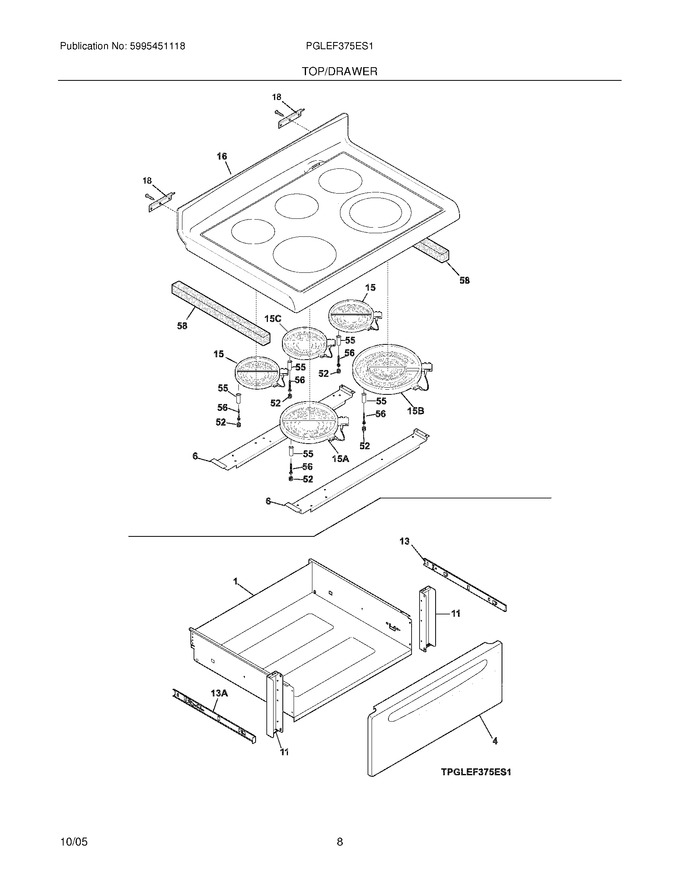

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107308		Drawer				$ 100.73
4	318303001		Panel,drawer ,white ,front		Appelez-nous	-
6	318180716		Bracket,element		Appelez-nous	-
11	318311501		Bracket,drawer Panel ,(2)		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh   (Replaces: 318259501)			Immediately	$ 69.01
16	318154588		Panel,main Top ,glass ,white/black ,assembly				$ 330.59
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
58	318285045		Insulation,1.25`` Thick ,19 X 3		Appelez-nous	-
13A	318259506		Glide,warmer ,inner Lh   (Replaces: 318259500)				$ 69.01
F15	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15A	318198819		Element,surface ,9`` ,2500 W				$ 256.01
F15B	318198926		Element,surface ,6/9 ,1700/2700w ,dual Radiant				$ 157.28
F15C	318198825		Element,surface ,warmer ,100 W				$ 191.21
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318199346		Harness,wiring ,cooktop		Appelez-nous	-
