SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

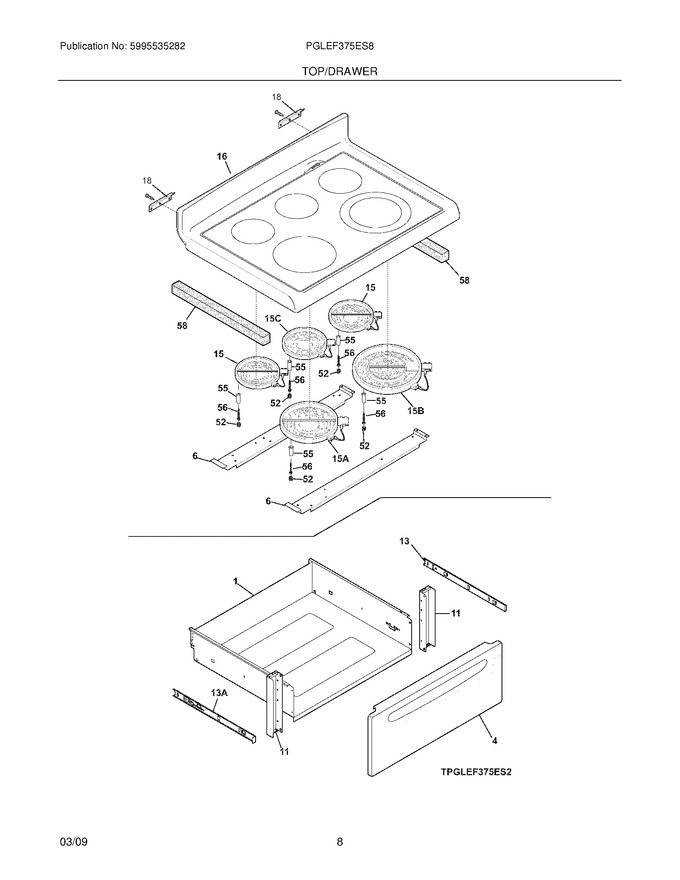

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107308		Drawer				$ 100.73
4	318303006		Panel,drawer ,white ,front		Appelez-nous	-
6	318180719		Bracket,element		Appelez-nous	-
11	318311502		Bracket,drawer Panel ,(2)				$ 9.56
13	318259504		Glide,warmer ,inner Rh				$ 29.49
16	318154588		Panel,main Top ,glass ,white/black ,assembly				$ 330.59
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
58	318285098		Insulation,1.25`` Thick ,19 X 2				$ 4.13
13A	318259505		Glide,warmer ,inner Lh				$ 33.03
F15	318178110		Element,surface ,small/6`` ,1200 W   (Replaces: 318198846)			Immediately	$ 122.86
F15A	316135401		Element,surface ,9`` ,2500 W   (Replaces: 318198835)			Immediately	$ 80.96
F15B	316282100		Element,surface ,6/9 ,1700/2700w ,dual Radiant   (Replaces: 318198934)			Immediately	$ 249.27
F15C	318198843		Element,surface ,warmer ,100 W				$ 206.01
FNI	318199368		Harness,wiring ,cooktop		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
