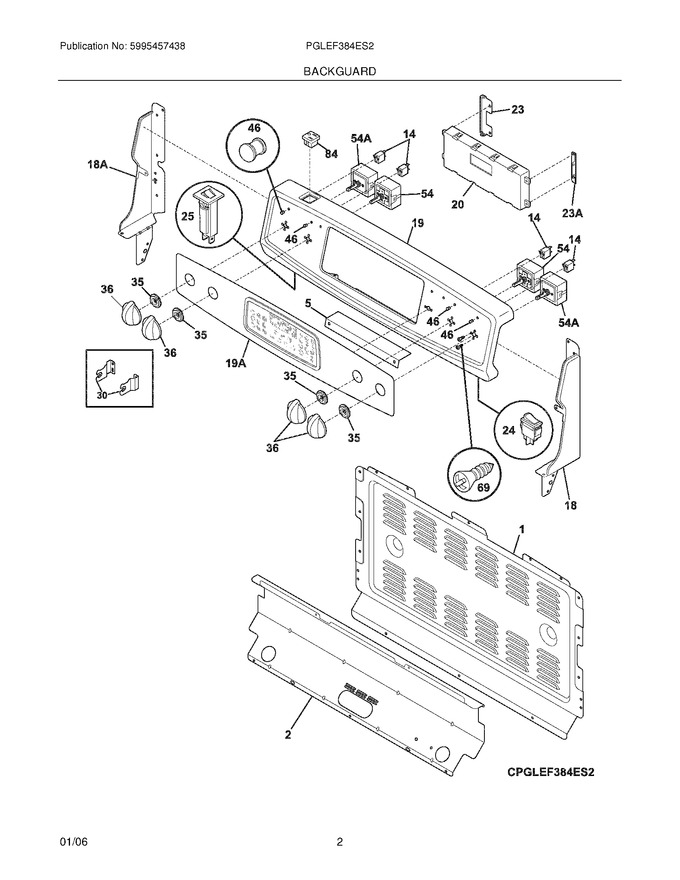

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314100		Panel,cover ,upper				$ 60.32
2	318288201		Shield,inner ,white		Appelez-nous	-
5	318340800		Plate,cover		Appelez-nous	-
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
18	318287902		End Cap,backsplash ,white ,rh				$ 44.52
19	318288650		Panel,control ,white		Appelez-nous	-
23	318308500		Bracket,control ,lh				$ 59.33
25	318324200		Breaker,white ,(2)				$ 18.01
30	318316900		Bracket,cooktop Mtg ,(2)		Appelez-nous	-
35	318335400		Support,retainer ,white ,(4)		Appelez-nous	-
36	318197620		Knob,control ,white		Appelez-nous	-
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
84	318146830		Outlet,electrical ,white ,combined		Appelez-nous	-
18A	318287903		End Cap,backsplash ,white ,lh				$ 40.07
19A	318329907		Panel,glass Assembly ,white ,with Membrane		Appelez-nous	-
23A	318308600		Bracket,control ,rh				$ 3.89
F20	316418760		Clock/timer,electronic ,es520t				$ 439.01
F54	903136-9030		Switch,surface Unit ,small   (Replaces: 318220083)			Immediately	$ 66.02
F54A	318191024		Switch,infinite ,dual			Immediately	$ 92.38
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
