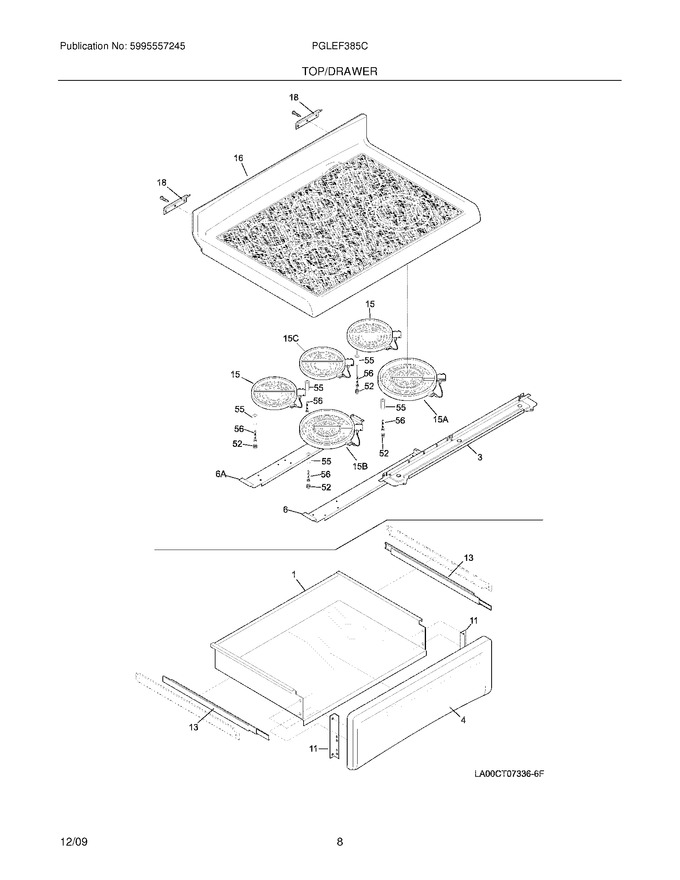

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107304		Drawer,utility		Appelez-nous	-
3	318144323		Support,main Top		Appelez-nous	-
4	318044303		Panel,drawer ,black ,front				$ 71.30
6	318180702		Bracket,element		Appelez-nous	-
11	318107500		Bracket,drawer Support ,(2)				$ 21.85
13	318220200		Track,drawer ,(2)		Appelez-nous	-
16	318154536		Panel,main Top ,glass ,black ,assembly		Appelez-nous	-
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
6A	318180713		Bracket,element		Appelez-nous	-
F15	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15A	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
F15B	318198922		Element,surface ,5/9 ,700/2100w ,dual Radiant		Appelez-nous	-
F15C	318198816		Element,surface ,warmer ,100 W		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
