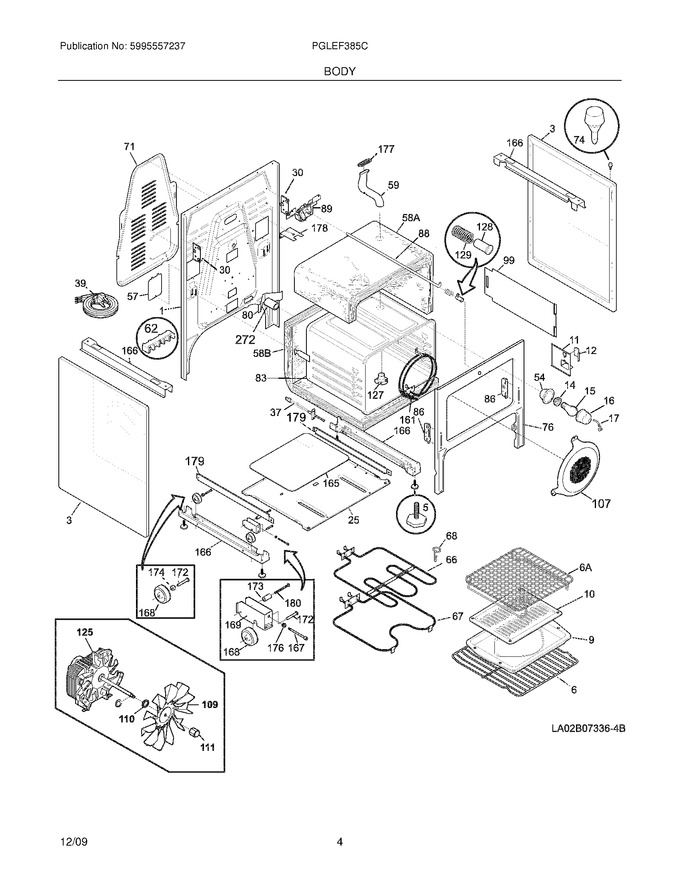

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318108102		Panel,main Back		Appelez-nous	-
3	318025613		Panel,bodyside ,bisque		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318025314		Rack,oven   (Replaces: 318025308)			Immediately	$ 148.70
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
11	318086100		Bracket-light Switch		Appelez-nous	-
12	318089801		Switch,door,oven Light				$ 77.03
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318108702		Shield,heat,lower		Appelez-nous	-
30	318110800		Bracket-hinge,main Top ,(2)		Appelez-nous	-
39	318113107		Cord,electric		Appelez-nous	-
54	318222400		Housing,oven Light				$ 58.22
57	318036501		Cover,access		Appelez-nous	-
59	318072522		Tube-oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
68	5304403015		Support,hanger ,broil Element				$ 35.04
71	318086601		Cover,wire		Appelez-nous	-
74	318141910		Bumper,bodyside ,(4)				$ 3.68
76	318108500		Frame,front,wheels Incl		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
83	318109416		Liner,oven		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	318118902		Rod-latch				$ 8.34
99	318126101		Deflector,heat ,side		Appelez-nous	-
107	318219405		Cover,fan   (Replaces: 318219401)				$ 82.69
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
165	318003100		Plate,heat Shield		Appelez-nous	-
166	318111000		Bracket,base Support		Appelez-nous	-
167	318147800		Screw,socket Head Cap ,lock		Appelez-nous	-
168	08011155		Roller				$ 6.88
169	318147700		Bracket,roller Housing				$ 3.83
172	08011131		Rivet,roller Shaft ,0.250 X 1.500		Appelez-nous	-
173	5304400434		Spacer,lock ,nylon		Appelez-nous	-
174	5303324511		Spacer, Roller		Appelez-nous	-
176	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
177	318053810		Gasket,vent				$ 29.40
178	318125702		Bracket-vent		Appelez-nous	-
179	318220300		Track,drawer ,(2)				$ 69.47
180	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
263	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
272	318249400		Tube,protector		Appelez-nous	-
58A	318133783		Insulation,oven Wrapper		Appelez-nous	-
58B	318133785		Insulation,oven Back		Appelez-nous	-
6A	318219500		Rack,broiler Pan		Appelez-nous	-
F125	316234601		Motor-fan				$ 454.70
F161	318255501		Element,convection ,350 W				$ 109.04
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
F67	318255401		Element,bake ,3400w   (Replaces: 318255400)			Immediately	$ 216.58
F89	318095957		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095937)			Immediately	$ 127.75
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	318120711		Switch				$ 87.68
