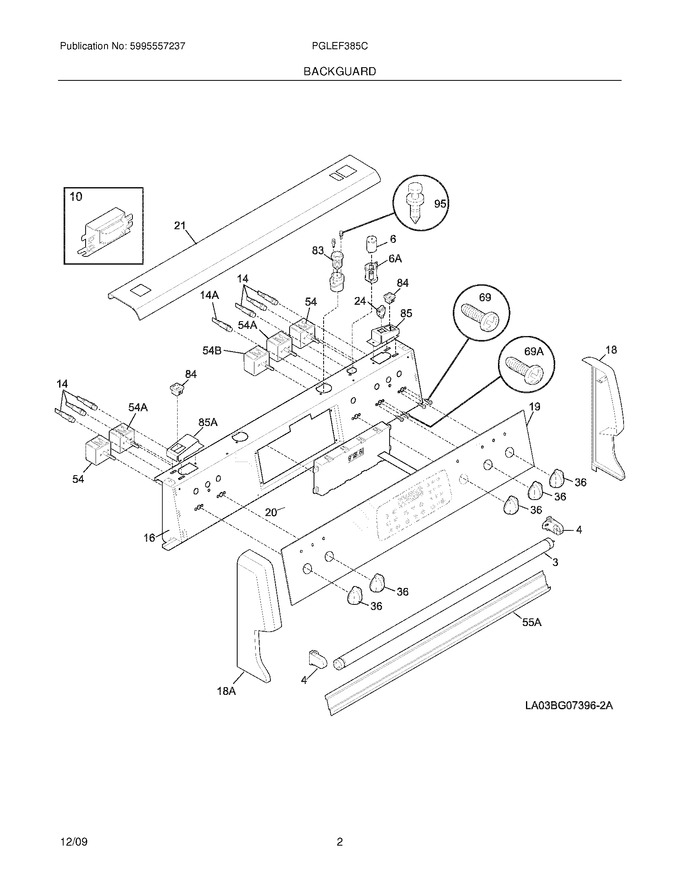

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303324517		Lamp,flourescent ,backguard		Appelez-nous	-
4	318110300		Receptacle-lamp,rh/lh				$ 11.82
6	5308068062		Starter,lamp				$ 30.46
16	318117566		Plate,instrument Mtg		Appelez-nous	-
18	318118800		End Cap,white ,rh		Appelez-nous	-
19	318217400		Panel,glass ,white ,with Membrane		Appelez-nous	-
21	318190022		Trim,canopy ,white		Appelez-nous	-
36	318197620		Knob,control ,white		Appelez-nous	-
69	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
85	318171710		Support,outlet/switch		Appelez-nous	-
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
18A	318118801		End Cap,white ,lh		Appelez-nous	-
55A	318118720		Trim,backsplash ,white ,bottom				$ 33.05
69A	5304401837		Screw,8-32 X 5/16		Appelez-nous	-
6A	318110400		Receptacle,starter				$ 52.29
85A	318171712		Support,outlet/switch				$ 3.30
F10	318122803		Ballast,lamp		Appelez-nous	-
F14	318044824		Light,indicator ,250v ,(2)		Appelez-nous	-
F14A	318044823		Light,indicator ,125v ,(6)		Appelez-nous	-
F20	318193201		Controller,electronic			Immediately	$ 472.69
F24	318037503		Switch,rocker ,white ,flourescent				$ 7.77
F54	318293813		Switch,surface Unit ,small   (Replaces: 318220063)			Immediately	$ 82.66
F54A	903097-9040		Switch,infinite ,dual   (Replaces: 318191001)			Immediately	$ 90.83
F54B	318078800		Switch,warmer ,drawer/zone				$ 163.01
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
F84	318146820		Outlet,electrical ,white-glossy ,combined		Appelez-nous	-
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
