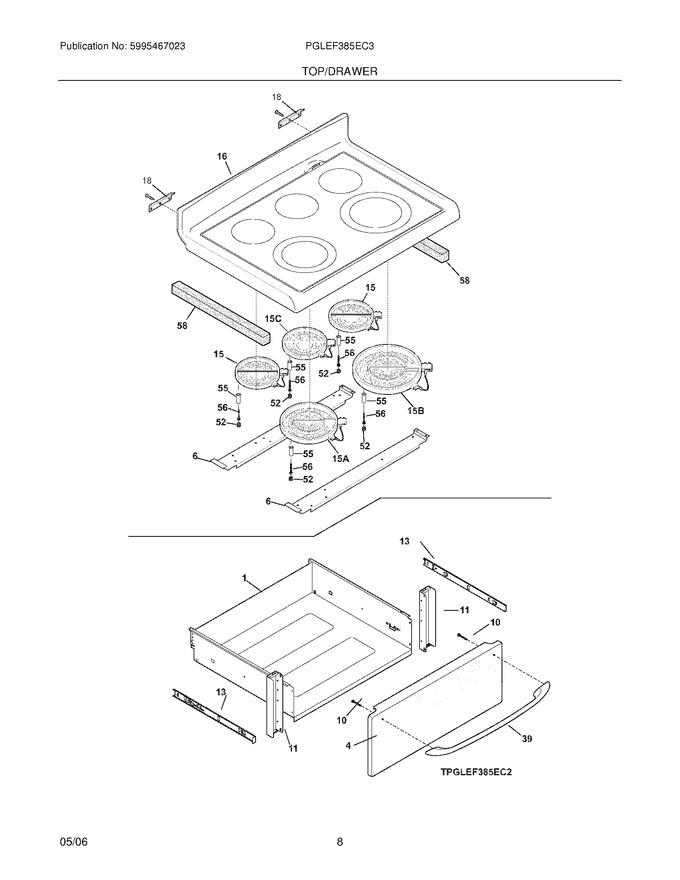

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107308		Drawer				$ 100.73
4	318311700		Panel,drawer ,stainless ,front		Appelez-nous	-
6	318180719		Bracket,element		Appelez-nous	-
10	5304452028		Screw,handle Mtg ,10-14 X 1/2 ,(2)				$ 11.02
11	318311502		Bracket,drawer Panel ,(2)				$ 9.56
13	318220200		Track,drawer ,(2)		Appelez-nous	-
16	318154587		Maintop,frame/glass ,black				$ 302.56
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
39	316270200		Handle,door ,black				$ 136.40
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
58	318285098		Insulation,1.25`` Thick ,19 X 2				$ 4.13
F15	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15A	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
F15B	318198926		Element,surface ,6/9 ,1700/2700w ,dual Radiant				$ 157.28
F15C	318198825		Element,surface ,warmer ,100 W				$ 191.21
NI	318199362		Harness,wiring ,cooktop		Appelez-nous	-
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
