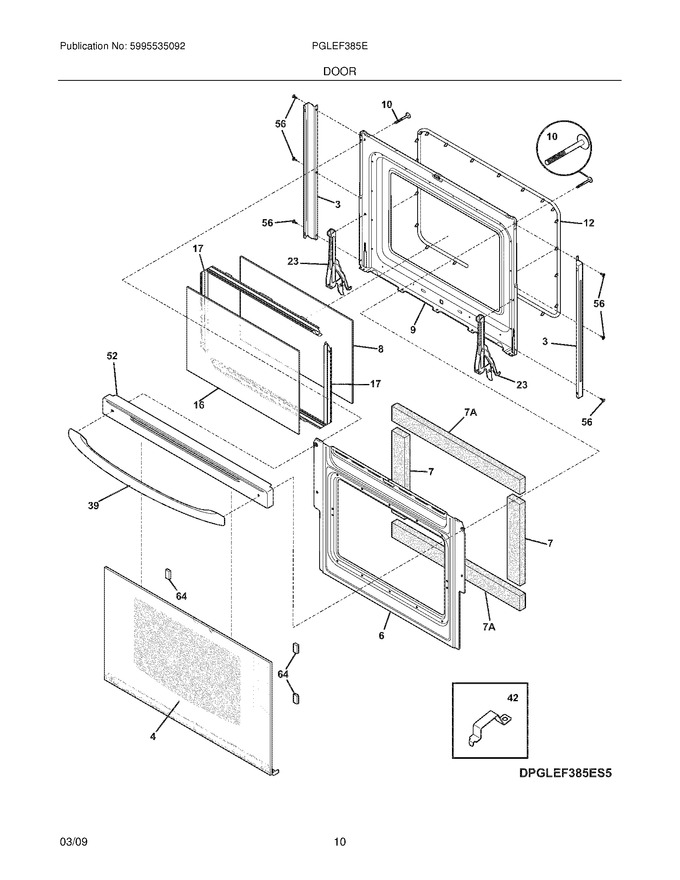

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301401		Trim,oven Door ,white				$ 27.72
4	318304107		Door Assembly,glass ,white ,w/trim		Appelez-nous	-
6	318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318360111		Liner,oven Door				$ 147.68
10	5304453593		Screw,handle Mtg.				$ 10.53
12	318053120		Seal,oven Door ,lower   (Replaces: 318053130)			Immediately	$ 159.62
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,lower ,(2)   (Replaces: 318264710)				$ 72.05
23	318567101		Hinge,oven Door ,(2)				$ 76.18
39	316270201		Handle,door ,white			Immediately	$ 128.29
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318304200		Trim,door ,white ,upper		Appelez-nous	-
56	5304448821		Screw,8-18 X 1/2 ,white ,(6)		Appelez-nous	-
64	318165800		Spacer				$ 17.72
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
