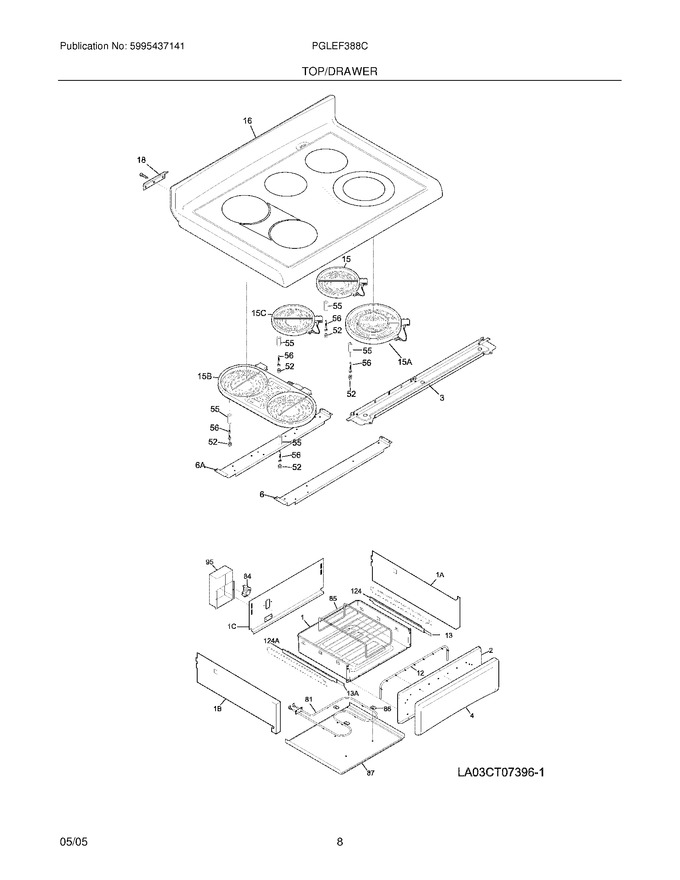

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108204		Liner,warmer Door		Appelez-nous	-
3	318144323		Support,main Top		Appelez-nous	-
4	318044301		Panel,drawer ,white ,front		Appelez-nous	-
6	318180702		Bracket,element		Appelez-nous	-
12	318053323		Seal,warmer Drawer		Appelez-nous	-
13	318259400		Channel,drawer ,rh ,inner		Appelez-nous	-
16	318154539		Panel,main Top ,glass ,black ,assembly		Appelez-nous	-
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318121503		Base-warmer		Appelez-nous	-
95	318143901		Cover,wire ,warmer Drawer		Appelez-nous	-
124	318259300		Channel,drawer ,rh ,outer				$ 73.50
13A	318259401		Channel,drawer ,lh ,inner				$ 28.92
1A	318143512		Deflector,warmer ,right Side		Appelez-nous	-
1B	318143513		Deflector,warmer ,left Side		Appelez-nous	-
1C	318143101		Deflector,warmer ,rear		Appelez-nous	-
6A	318180713		Bracket,element		Appelez-nous	-
F124	318259301		Channel,drawer ,lh ,outer				$ 62.07
F15	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
F15A	318198817		Element,surface ,small/6`` ,1200 W			Immediately	$ 192.78
F15B	318258201		Element,bridge ,1800/2600			Immediately	$ 480.54
F15C	318198816		Element,surface ,warmer ,100 W		Appelez-nous	-
F81	318255301		Element,warmer Drawer   (Replaces: 318255300)				$ 105.42
F84	318005103		Thermostat,safety				$ 159.51
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
