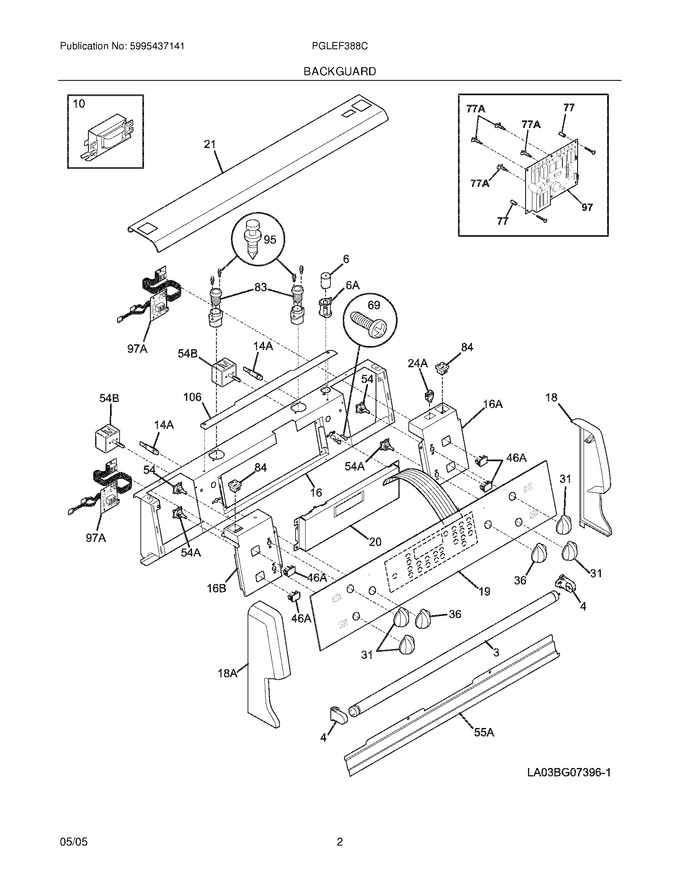

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303324517		Lamp,flourescent ,backguard		Appelez-nous	-
4	318110300		Receptacle-lamp,rh/lh				$ 11.82
6	5308068062		Starter,lamp				$ 30.46
16	318117567		Plate,instrument Mtg		Appelez-nous	-
18	318118800		End Cap,white ,rh		Appelez-nous	-
19	318032139		Panel,glass ,white ,with Membrane		Appelez-nous	-
20	318019820		Controller,electronic ,white		Appelez-nous	-
21	318190022		Trim,canopy ,white		Appelez-nous	-
31	318197600		Knob,control ,white				$ 30.45
36	318197620		Knob,control ,white		Appelez-nous	-
54	316239600KIT		Control,surface Element ,single ,potentiometer   (Replaces: 316239600)			Immediately	$ 122.03
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
77	316247900		Spacer,power Board ,(4)				$ 44.65
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
97	316239401		Board,power		Appelez-nous	-
106	318148100		Plate,cover		Appelez-nous	-
16A	318224502		Support,potentiometer ,rh		Appelez-nous	-
16B	318224503		Support,potentiometer ,lh		Appelez-nous	-
18A	318118801		End Cap,white ,lh		Appelez-nous	-
46A	316239000		Lens,led Display				$ 56.28
54A	316239601KIT		Control,surface Element ,dual ,potentiometer   (Replaces: 316239601)				$ 88.36
55A	318118730		Trim,backsplash ,white ,bottom		Appelez-nous	-
6A	318110400		Receptacle,starter				$ 52.29
77A	316114100		Spacer,(2)				$ 60.96
97A	318217500		Board,user Interface		Appelez-nous	-
97A	316247600		Spacer,foam ,(16) ,user Interface		Appelez-nous	-
F10	318122803		Ballast,lamp		Appelez-nous	-
F14A	318044823		Light,indicator ,125v ,(1)		Appelez-nous	-
F24A	318037503		Switch,rocker ,white ,flourescent				$ 7.77
F54B	318078800		Switch,warmer ,drawer/zone				$ 163.01
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
F84	318146820		Outlet,electrical ,white-glossy ,combined		Appelez-nous	-
NI	316247800		Washer-lock,control Mtg				$ 18.20
NI	316247700		Nut,hex Control Mtg ,(4)				$ 18.20
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
