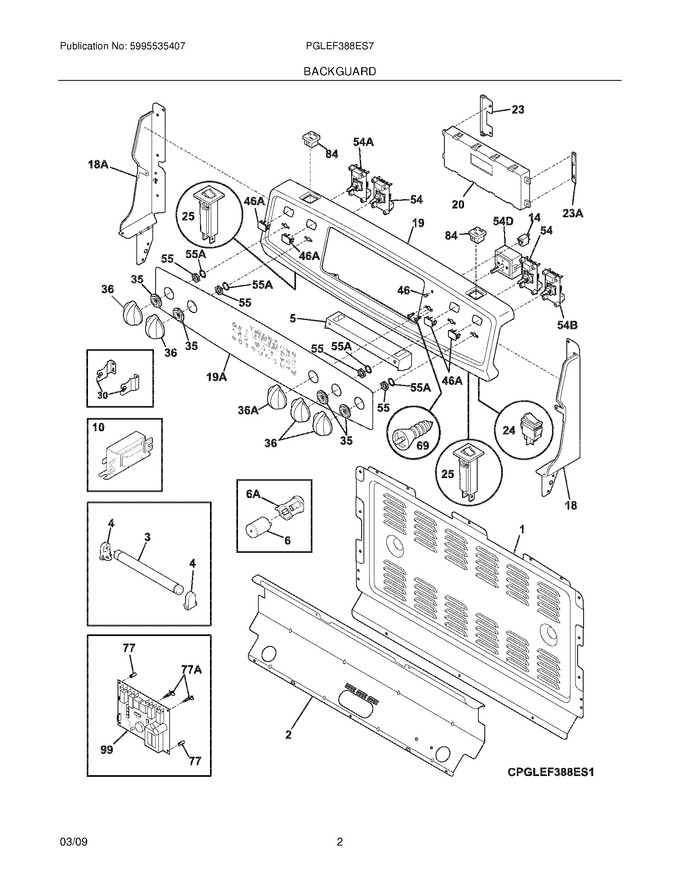

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314100		Panel,cover ,upper				$ 60.32
2	318288215		Shield,inner		Appelez-nous	-
3	5304448825		Lamp,fluorescent ,backguard				$ 28.19
4	318323401		Receptacle,lamp ,rh/lh				$ 5.58
5	318288000		Housing,light				$ 9.19
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
18	318287902		End Cap,backsplash ,white ,rh				$ 44.52
19	318288640		Panel,control ,white		Appelez-nous	-
23	318308500		Bracket,control ,lh				$ 59.33
25	318324200		Breaker,white ,(2)				$ 18.01
30	318316900		Bracket,cooktop Mtg ,(2)		Appelez-nous	-
35	318335400		Support,retainer ,white ,(4)		Appelez-nous	-
36	318197603		Knob,control ,white				$ 25.25
46	318228310		Lens,indicator Light ,(2)			Immediately	$ 22.91
55	316247700		Nut,mounting				$ 18.20
69	5304401837		Screw,8-32 X 5/16		Appelez-nous	-
77	316247900		Spacer,power Board				$ 44.65
84	318146830		Outlet,electrical ,white ,combined		Appelez-nous	-
18A	318287903		End Cap,backsplash ,white ,lh				$ 40.07
19A	318322904		Panel,glass Assembly ,white ,w/membrane				$ 394.96
23A	318308600		Bracket,control ,rh				$ 3.89
36A	318197620		Knob,control ,white		Appelez-nous	-
46A	316239000		Lens,led Display				$ 56.28
55A	318086007		Washer,flat ,(4) ,control				$ 9.93
6A	318110400		Receptacle,starter				$ 52.29
77A	316114100		Spacer				$ 60.96
F10	318122805		Ballast,lamp				$ 38.48
F20	316418766		Clock/timer,electronic ,es520t				$ 343.54
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	316441810		Control,electronic ,single Element ,w/potentiometer				$ 265.07
F54A	316441811		Control,electronic ,right Front ,dual Element,w/potentiometer			Immediately	$ 265.61
F54B	316441814		Control,electronic ,left Front ,dual Element,w/potentiometer			Immediately	$ 326.79
F54D	318078804		Switch,element ,warmer				$ 95.96
F6	5304448826		Starter,lamp				$ 13.49
F99	316435703		Board,power Supply			Immediately	$ 394.48
FNI	318402300		Harness,wiring ,control Panel		Appelez-nous	-
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	318146012		Bushing,control ,(4)				$ 15.60
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
