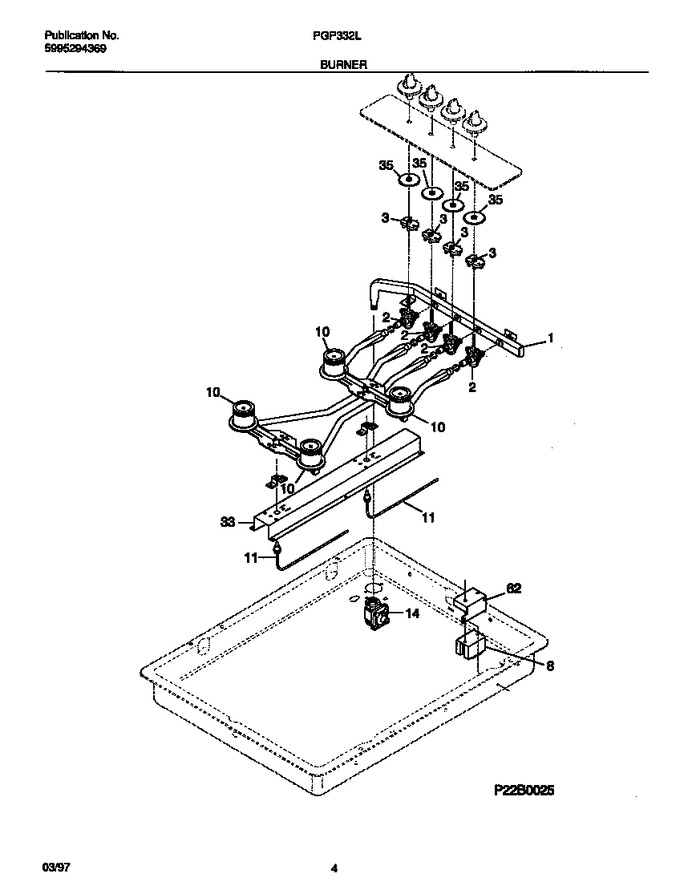

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316032002		Switch-ignitor, (5)				$ 63.46
8	5303912606		Spark Module				$ 134.67
14	5303271248		Regulator-pressure, Lp		Appelez-nous	-
33	3201449		Bracket-burner Mtg		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
62	3201439		Cover, Spark Module		Appelez-nous	-
*59803	08011129		Nut, 6-32		Appelez-nous	-
*59804	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*59805	5303307979		Harness-wiring, Main		Appelez-nous	-
*59806	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
10A	3201432		Burner - Top (lf)		Appelez-nous	-
10B	3201433		Burner - Top (lr)		Appelez-nous	-
10C	3201434		Burner - Top (rf)		Appelez-nous	-
10D	3201435		Burner - Top (rr)		Appelez-nous	-
11A	318148600		Ignitor-top Burner		Appelez-nous	-
11A	318148601		Ignitor-top Burner		Appelez-nous	-
1A	318077701		Manifold Pipe		Appelez-nous	-
2A	316036601		Valve-top Burner, (4)		Appelez-nous	-
NI	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-
NI	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive (not Illustrated)			Immediately	$ 9.36

    View Diagram in Separate Window       Print Part List
