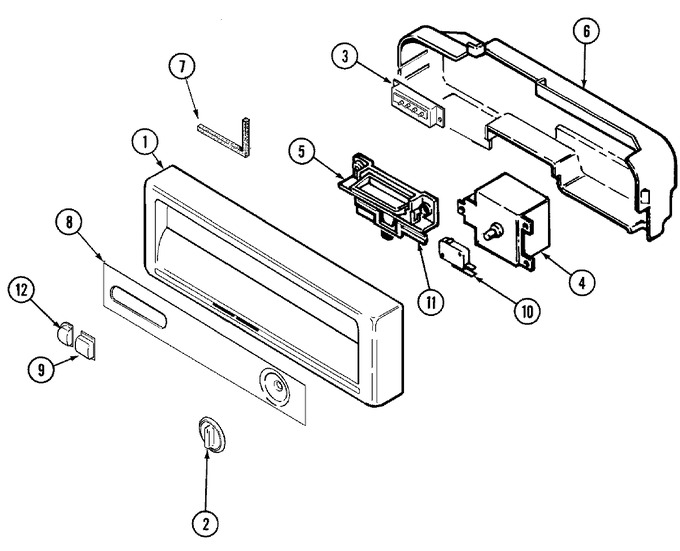

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 1 | 99002559 | Felt, Control Panel (side) | 10 |
|
- | ||||
| 1 | 99001556 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | 99001872 | Knob, Timer (blk) | 10 |
|
$ 50.14 | ||||
| 3 | 99002391 | Switch, Control (4-button) | 10 |
|
- | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 4 | 99002430 | Timer | 10 |
|
$ 172.36 | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 5 | WP99002240 | Holder, Switch (Replaces: 99002240) | 10 |
|
$ 63.31 | ||||
| 6 | 99001588 | Barrier, Control Panel | 10 |
|
- | ||||
| 7 | Y913177 | Seal, Vent Outlet | 10 |
|
- | ||||
| 7 | Y913116 | Liner, Vent | 10 |
|
- | ||||
| 8 | 99002435 | Insert, Facia (blk) | 10 |
|
- | ||||
| 9 | 99001493 | Button, Switch (mdl-blk) | 10 |
|
- | ||||
| 10 | WP99002207 | Switch, Door (Replaces: 99002207) | 10 |
|
$ 30.87 | ||||
| 11 | W10834433 | Handle, Latch (blk) (Replaces: 99002084) | 10 |
|
Immediately | $ 108.37 | |||
| 12 | 99001491 | Button, Switch (end-blk) | 10 |
|
- | ||||
| 13 | 99002428 | Harness, Wire | 10 |
|
- | ||||
| 13 | 99002496 | Harness, Wire | 27 |
|
- |
