SELECT A DIAGRAM
New Model Search:

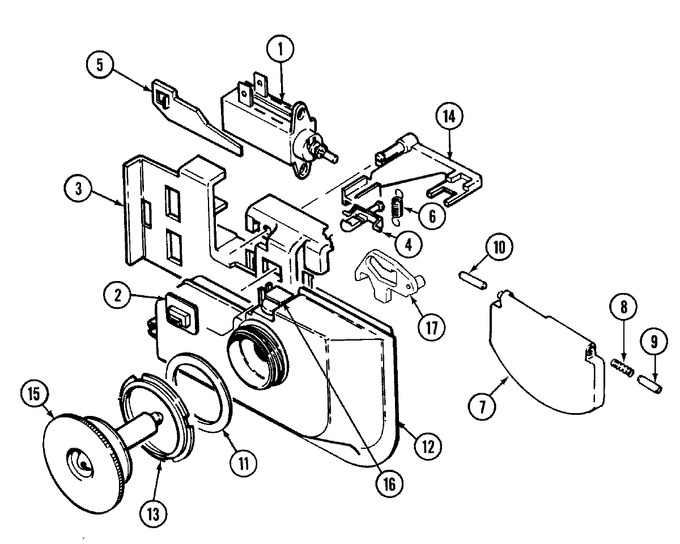

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP902899 | Motor, Wax (Replaces: 902899) | 10 |
|
$ 71.20 | ||||
| 2 | WP99001553 | Grommet, Dispenser (Replaces: 99001553) | 10 |
|
$ 59.08 | ||||
| 3 | 99001288 | Retainer | 10 |
|
$ 5.84 | ||||
| 4 | 99001291 | Latch, Dispenser | 10 |
|
$ 5.70 | ||||
| 5 | 99001289 | Slider | 10 |
|
$ 5.70 | ||||
| 6 | WPW10116816 | Spring, Dispenser Latch (Replaces: Y912676) | 10 |
|
$ 7.22 | ||||
| 7 | 99001638 | Lid, Detergent Cup (wht) | 10 |
|
- | ||||
| 8 | Y912547 | Spring, Cup Lid | 10 |
|
$ 5.83 | ||||
| 9 | WP6-912678 | Pin, Hinge (long) (Replaces: Y912678) | 10 |
|
$ 6.82 | ||||
| 10 | Y912679 | Pin, Hinge (short) | 10 |
|
$ 3.98 | ||||
| 11 | Y913061 | Gasket, Reservoir | 10 |
|
- | ||||
| 12 | WP99002833 | Reservoir, Rinse Aid (Replaces: 99002004) | 10 |
|
$ 64.17 | ||||
| 13 | 99002005 | Nut, Rinse Aid | 10 |
|
$ 5.65 | ||||
| 14 | 99001290 | Actuator, Rinse Aid | 10 |
|
$ 5.83 | ||||
| 15 | Y912923 | Knob, Rinse Aid (wht) | 10 |
|
$ 25.95 | ||||
| 16 | 903124 | Plunger Assembly | 10 |
|
- | ||||
| 17 | 99001287 | Pivot | 10 |
|
$ 5.70 |
