SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet

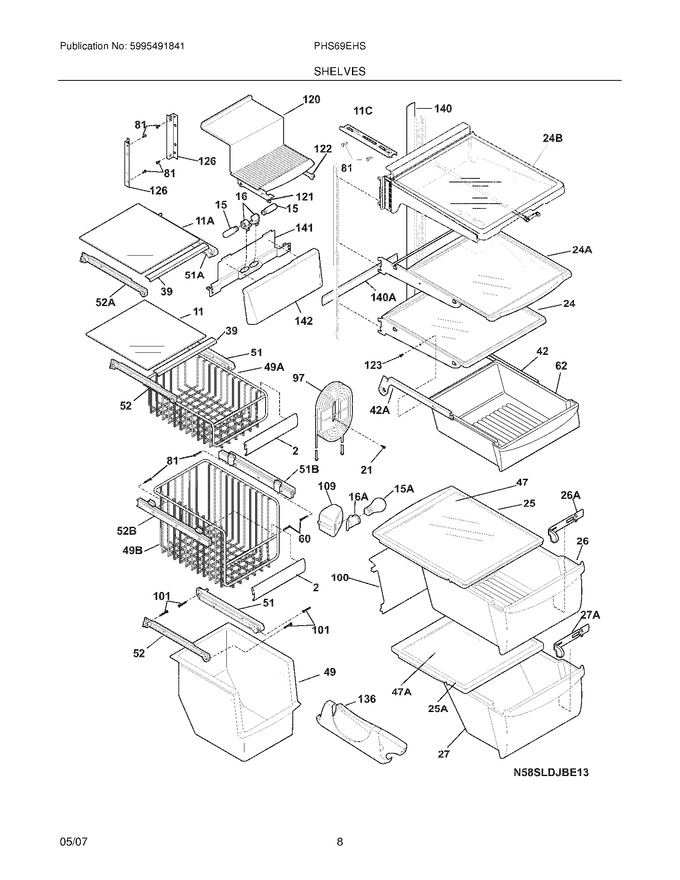

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510604		Trim-basket				$ 74.08
11	240350605		Shelf-freezer,glass ,lower   (Replaces: 240350668)				$ 106.93
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	240590403		Socket-light   (Replaces: 240590401)				$ 26.54
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625 ,21   (Replaces: 5304455658)				$ 14.41
24	240355203		Shelf-``spill-safe``,fixed				$ 379.94
25	240350703		Cover-crisper Pan				$ 102.11
26	240351042		Pan-crisper,upper		Appelez-nous	-
27	240351240		Pan-crisper,lower   (Replaces: 240351219)				$ 203.45
39	240367602		Trim-shelf,front				$ 45.36
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350649		Insert-pan Cover,glass   (Replaces: 240350602)			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
62	240342830		Pan-meat   (Replaces: 240342818)				$ 85.99
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240545303)				$ 280.67
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
109	240351301		Base-crisper Light Socket				$ 15.65
120	241691901		Shelf-ice Cream				$ 79.62
121	241561001		Rail-ice Cream Shelf,lh				$ 101.63
122	241692001		Rail-ice Cream Shelf,lh				$ 85.69
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
136	241657701		Dispenser-can,white				$ 57.41
140	240430501		Channel,wtr Tube Cover				$ 97.81
141	240585404		Bracket-light Socket				$ 99.49
142	240582703		Shield-light Mid Level				$ 99.49
11A	240350604		Shelf-freezer,glass ,upper   (Replaces: 240350667)				$ 114.52
11C	240324101		Shelf-pizza				$ 59.91
15A	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16A	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
24A	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350106)				$ 176.70
24B	240350150		Shelf-``spill-safe``,sliding ,``aspect`` ,complete   (Replaces: 240424609)				$ 176.70
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)			Immediately	$ 91.99
26A	241638201		Control-humidity				$ 17.69
27A	240362201		Control-humidity				$ 69.46
42A	240356702		Seal-meat Pan		Appelez-nous	-
42A	240350001		· Spring-meat Pan Rail				$ 76.55
42A	240349901		Block-meat Pan Rail,lh				$ 67.01
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 58.12
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
49A	240530502		Basket-sliding,upper ,half				$ 201.08
49B	240530504		Basket-sliding,upper ,full				$ 207.81
51A	240395502		Hanger-basket,rh				$ 73.00
51B	240579801		Hanger-basket,rh				$ 61.27
52A	240395602		Hanger-basket,lh				$ 61.66
52B	240579802		Hanger-basket,lh				$ 60.01
F140	240430503		Channel,wtr Tube Cover		Appelez-nous	-
F26A	241638101		Frame-humidity Control				$ 51.74
NI	241768150		Energy Guide		Appelez-nous	-
NI	241595202		Clip-slide,pan-crisper				$ 18.20
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	240423301		Divider-crisper Pan				$ 144.53
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	241537504		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
