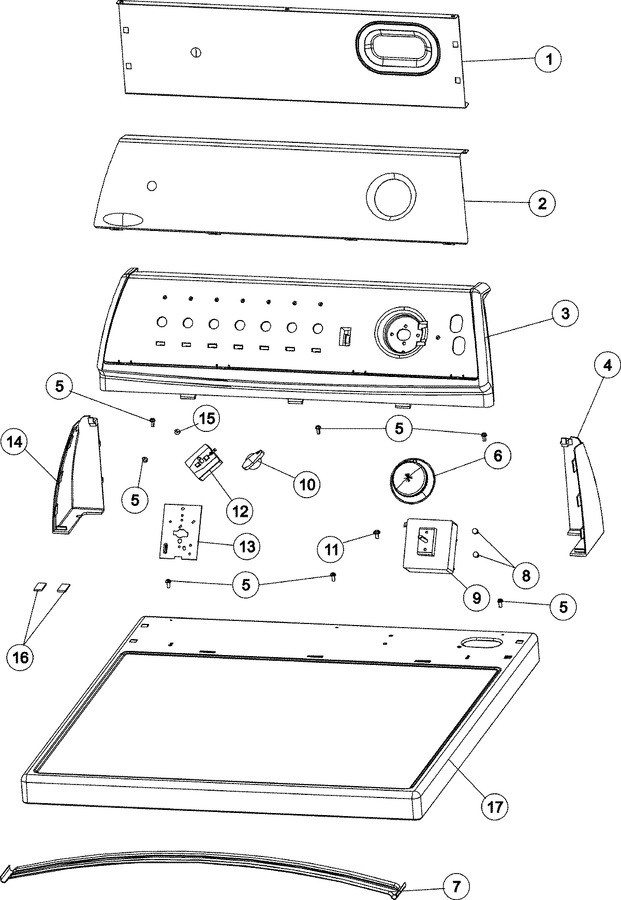

01 - Base, Heater & Motor (gas)
02 - Cabinet & Front Panel
03 - Control Panel & Top
04 - Supplemental Information
05 - Tumbler
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 37001233 | Shield, Backguard | 10 |
|
- | ||||
| 2 | 37001217 | Facia | 10 |
|
- | ||||
| 3 | 21001552 | Frame (wht), Control Panel | 10 |
|
- | ||||
| 4 | 21001547 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 5 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | WP37001184 | Timer Knob & Skirt Assembly (Replaces: 37001184) | 10 |
|
Immediately | $ 51.24 | |||
| 7 | 56486 | Brace, Top | 10 |
|
- | ||||
| 8 | WP489128 | Screw, No.8-32x3/8`` Hex (Replaces: 37001031) | 10 |
|
$ 9.79 | ||||
| 9 | 37001240 | Timer - Dryer | 10 |
|
$ 158.47 | ||||
| 9 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 10 | 21002196 | Knob-selector | 10 |
|
$ 24.74 | ||||
| 11 | D503688 | Screw (Replaces: 503688) | 10 |
|
Immediately | $ 6.95 | |||
| 12 | 31001190 | Switch, Two Position Rotary | 10 |
|
$ 52.56 | ||||
| 13 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 14 | 21001546 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 15 | 31260 | Screw, No.8 X 3/8 Ind H | 10 |
|
$ 2.68 | ||||
| 16 | WP500121 | Pad, Felt-coin (Replaces: 500121) | 10 |
|
Immediately | $ 7.75 | |||
| 17 | 37001232 | Cover, Top - White/dryer | 10 |
|
- |
