01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven/base


05 - Top Assembly


06 - Wiring Information

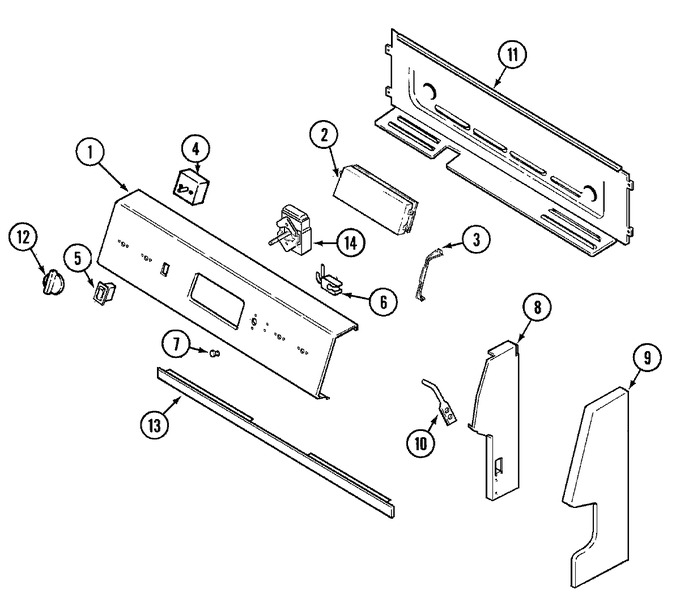

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006284		Panel, Control (blk)	10	Appelez-nous	-
2	74006285		Clock (blk)	10	Appelez-nous	-
2	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	10			$ 6.98
3	74003426		Bracket, Clock	10	Appelez-nous	-
3	WPY706189		Screw (8abx3/8-blk)   (Replaces: 7101P347-60)	10		Immediately	$ 6.47
4	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
4	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
4	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
5	74003363		Switch, Rocker (blk)	10	Appelez-nous	-
6	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
7	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
8	74003366		Support, Control Panel (lt)	10	Appelez-nous	-
8	74003365		Support, Control Panel (rt)	10	Appelez-nous	-
9	74003368		End Cap, Control Pnl (lt-blk)	10	Appelez-nous	-
9	74003367		End Cap, Control Pnl (rt-blk)	10	Appelez-nous	-
9	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
10	74003371		Hinge, Main Top (rod)	10	Appelez-nous	-
10	74003975		Screw (8abx3/8-blk)	10			$ 12.02
11	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
11	74003372		Housing, Control Panel	10	Appelez-nous	-
12	74003427		Knob, Infinite Switch (blk)	10			$ 16.42
13	74003374		Shield, Sight	10	Appelez-nous	-
13	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
14	WP74005019		Thermostat   (Replaces: 74005019)	10			$ 197.50
14	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
15	12001323		Wire/terminal Kit	10	Appelez-nous	-
16	74005904		Manual, Use & Care	10	Appelez-nous	-
17	16010161		Manual, Srvc Elec/gas Range	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
