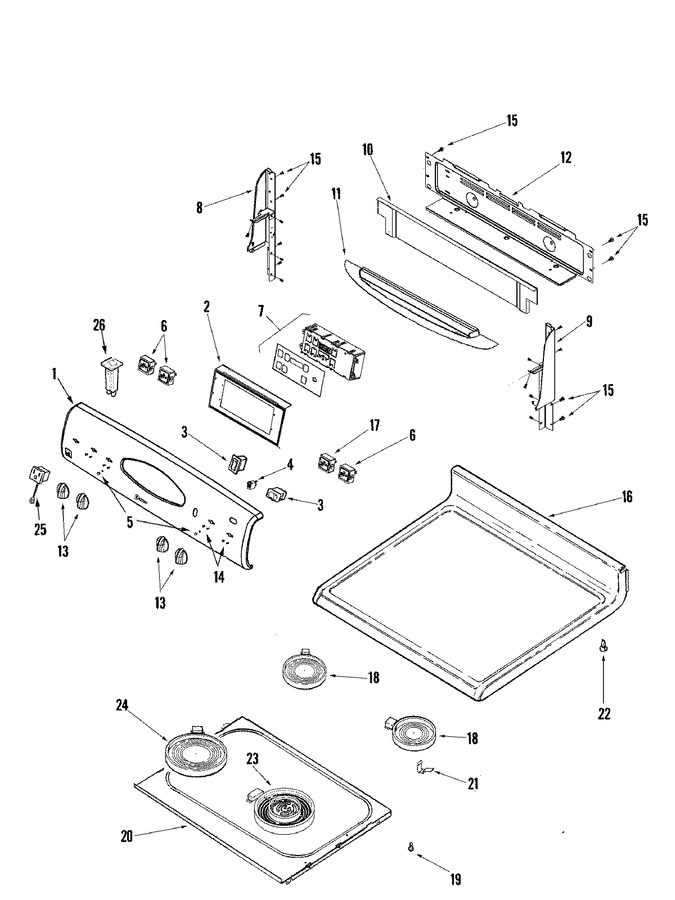

01 - Cabinet
02 - Cavity
03 - Control Panel/top Assembly
04 - Door/drawer
05 - Supplemental Information
06 - Wiring Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009357 | Panel, Backguard (bsq) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 3 | 74008939 | Switch, Rocker (bsq) | 10 |
|
- | ||||
| 4 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 5 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 6 | WP74003122 | Switch, Infinite (dual) (Replaces: 74003122) | 10 |
|
Immediately | $ 73.53 | |||
| 6 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 6 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 7 | 74009230 | Clock/overlay (bsq) | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74009078 | End Cap (rt-bsq) | 10 |
|
- | ||||
| 9 | 74009080 | End Cap (lt-bsq) | 10 |
|
- | ||||
| 10 | 74009207 | Shield, Vent (bsq) | 10 |
|
- | ||||
| 11 | 74009204 | Shield, Heat Visor (bsq) | 10 |
|
$ 38.28 | ||||
| 12 | 74009335 | Cover, Backguard Wire | 10 |
|
- | ||||
| 12 | 74008836 | Insulation, Foil (bkgd) | 10 |
|
- | ||||
| 13 | 74009189 | Knob (bsq) | 10 |
|
- | ||||
| 14 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 74008531 | Top Assembly (bsq) | 10 |
|
- | ||||
| 17 | WP74008940 | Switch, Infinite (flex) (Replaces: 74008940) | 10 |
|
Immediately | $ 125.54 | |||
| 18 | W10823711 | Element (1200w) (Replaces: 74008568) | 10 |
|
Immediately | $ 183.95 | |||
| 19 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 20 | 74008900 | Bottom, Burner Box | 10 |
|
- | ||||
| 21 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 10 |
|
$ 10.51 | ||||
| 22 | 74008761 | Spacer, Snap-in | 10 |
|
$ 7.55 | ||||
| 23 | W10823692 | Element, Dual (2400w) (Replaces: 74008897) | 10 |
|
Immediately | $ 204.83 | |||
| 24 | W10823696 | Element (2500w) (Replaces: 74009034) | 10 |
|
Immediately | $ 192.83 | |||
| 25 | 74005144 | Receptacle, Outlet (bsq) | 10 |
|
- | ||||
| 26 | 74009346 | Breaker, Circuit (bsq) | 10 |
|
- | ||||
| 26 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 |
