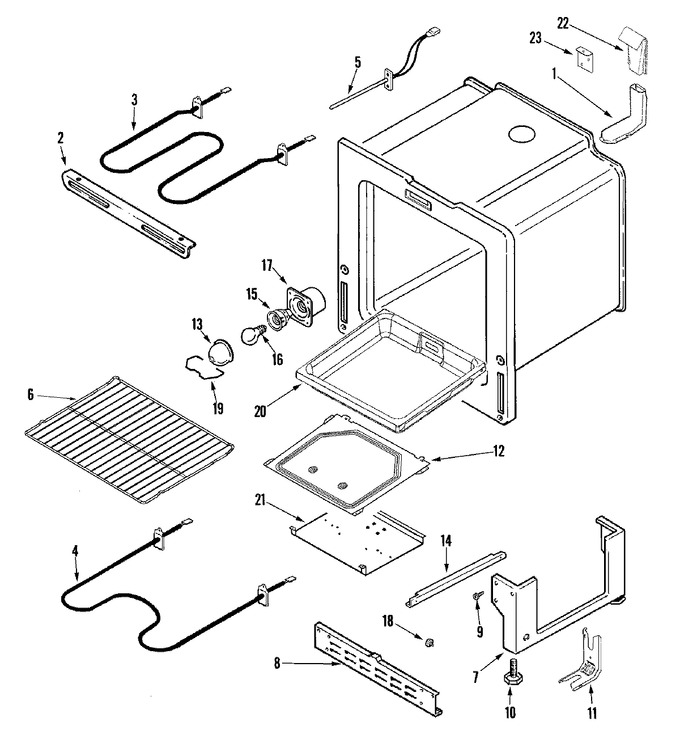

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	74003394		Vent Box Assembly	10	Appelez-nous	-
2	74003386		Support, Broil Element	10	Appelez-nous	-
3	WPW10310249		Element, Broil (4 Pass)   (Replaces: 74003041)	10		Immediately	$ 112.33
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP7406P438-60		Element, Bake   (Replaces: 74011047)	10			$ 160.90
5	12001656		Sensor, Oven (long)   (Replaces: 74004943)	10		Immediately	$ 39.55
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
7	74006325		Pedestal, Side	10	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	W11665456		Leg, Leveling   (Replaces: 74002373)	10		Immediately	$ 25.30
11	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 4.69
11	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
12	74006522		Retainer, Insulation (bottom)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74003389		Cover, Bulb	10	Appelez-nous	-
14	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
14	74003565		Runner, Drawer	10	Appelez-nous	-
15	74003387		Receptacle, Bulb	10			$ 5.84
16	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
17	74003388		Housing, Bulb	10	Appelez-nous	-
18	74005230		Nut, Lock (8-32)	10			$ 12.02
18	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
18	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
19	74003391		Retainer, Bulb Cover	10	Appelez-nous	-
20	74011042		Bottom, Dutch Oven	10	Appelez-nous	-
21	74006591		Shield, Warming Drawer	10	Appelez-nous	-
22	74008597		Screen, Smoke Eliminator	10	Appelez-nous	-
22	74009987		Extension, Vent (elect)	10	Appelez-nous	-
23	74009988		Bracket, Vent Extension	10	Appelez-nous	-
