View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
SELECT A DIAGRAM
New Model Search:

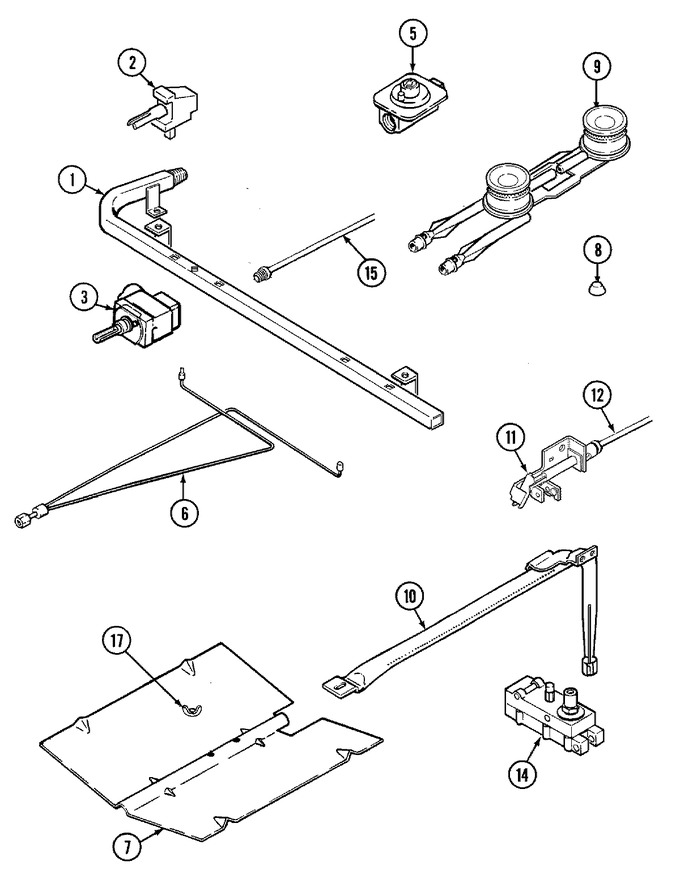

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002424 | Pipe, Manifold | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74002383 | Valve, Burner | 10 |
|
- | ||||
| 2 | 74002433 | Screw, Valve | 10 |
|
- | ||||
| 3 | 7101P010-60 | Screw, Control | 10 |
|
- | ||||
| 3 | 74006182 | Thermostat | 10 |
|
- | ||||
| 4 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 5 | 7510P002-60 | Regulator, Pressure | 10 |
|
- | ||||
| 6 | 7103P128-60 | Nut, Top Pilot | 10 |
|
- | ||||
| 6 | 74002426 | Pilot, Burner | 10 |
|
$ 65.96 | ||||
| 7 | 74002393 | Baffle, Oven Burner | 10 |
|
- | ||||
| 8 | 74002435 | Cone, Burner Pilot | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74003332 | Burner, Top | 10 |
|
$ 108.84 | ||||
| 10 | 74002434 | Burner, Oven | 10 |
|
$ 94.06 | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 11 | 74006183 | Pilot, Oven | 10 |
|
$ 74.59 | ||||
| 12 | 74006184 | Tubing, Pilot | 10 |
|
- | ||||
| 13 | 74006185 | Tubing, Oven Valve | 10 |
|
- | ||||
| 14 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 14 | 74002428 | Valve, Oven | 10 |
|
- | ||||
| 16 | W10124350 | Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit) | 10 |
|
- |
