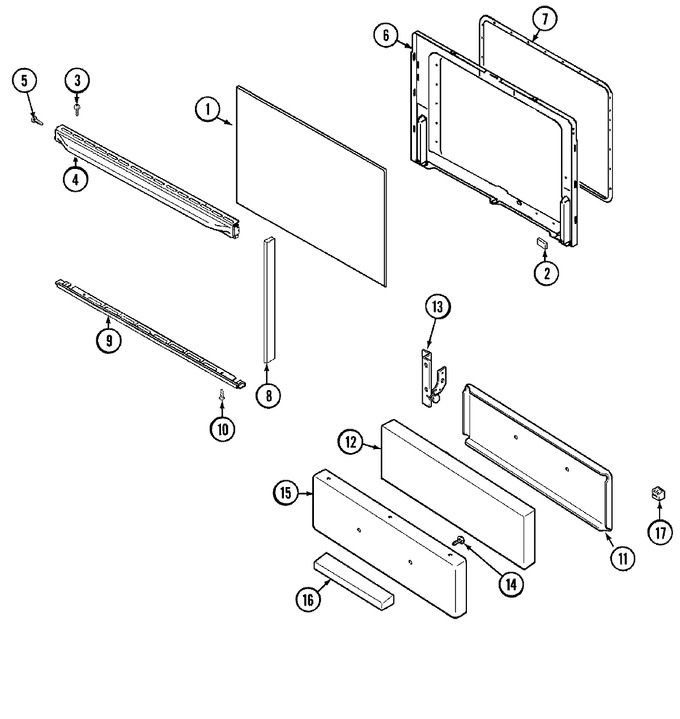

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P325-60		Glass, Door (outer-blk)	10	Appelez-nous	-
2	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
4	74003429		Handle, Door (blk)	10			$ 93.87
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
6	74003240		Lining, Door	10	Appelez-nous	-
7	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
8	74003430		End Cap, Door (blk)	10			$ 59.35
9	74003432		Trim, Bottom (blk)	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74002397		Lining, Drawer	10	Appelez-nous	-
11	74007553		Lining, Drawer	14	Appelez-nous	-
12	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74007560		Hinge, Drawer	14			$ 61.30
13	74002398		Hinge, Drawer	10	Appelez-nous	-
14	74002481		Screw	10			$ 5.82
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	74001729		Panel, Drawer (wht)	10	Appelez-nous	-
16	74001820		Handle (short-chr)	10	Appelez-nous	-
17	8016P015-60		Glide	10			$ 5.65
