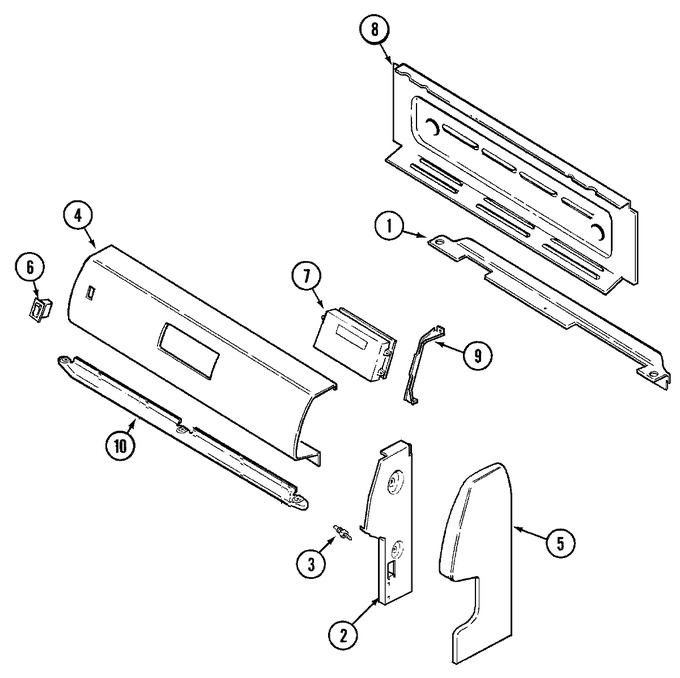

SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005319 | Shield, Vent Deflector | 10 |
|
- | ||||
| 2 | 74002403 | Bracket, Panel (rt) | 10 |
|
- | ||||
| 2 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 2 | 74002402 | Bracket, Panel (lt) | 10 |
|
- | ||||
| 3 | 74002404 | Pin, Main Top Hinge | 10 |
|
- | ||||
| 4 | 74006273 | Panel, Control (wht) | 10 |
|
- | ||||
| 5 | 74004982 | Screw (6abx1/2 3/16) | 10 |
|
- | ||||
| 5 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 5 | 74002438 | End Cap, Panel (rt-wht) | 10 |
|
- | ||||
| 5 | 74002439 | End Cap, Panel (lt-wht) | 10 |
|
- | ||||
| 6 | 7403P200-60 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 7 | 74005381 | Clock (wht) | 10 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74005320 | Housing, Control Panel | 10 |
|
- | ||||
| 9 | 74002449 | Bracket, Clock | 10 |
|
- | ||||
| 9 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 9 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 10 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 10 | 74003828 | Extension, Vent Deflector | 10 |
|
- | ||||
| 11 | 74005147 | Harness, Control Panel | 10 |
|
- | ||||
| 12 | 74005263 | Manual, Use & Care | 10 |
|
- | ||||
| 12 | 16008701 | Manual, Use & Care (frch) | 10 |
|
- | ||||
| 13 | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
