SELECT A DIAGRAM

01 - Control Panel

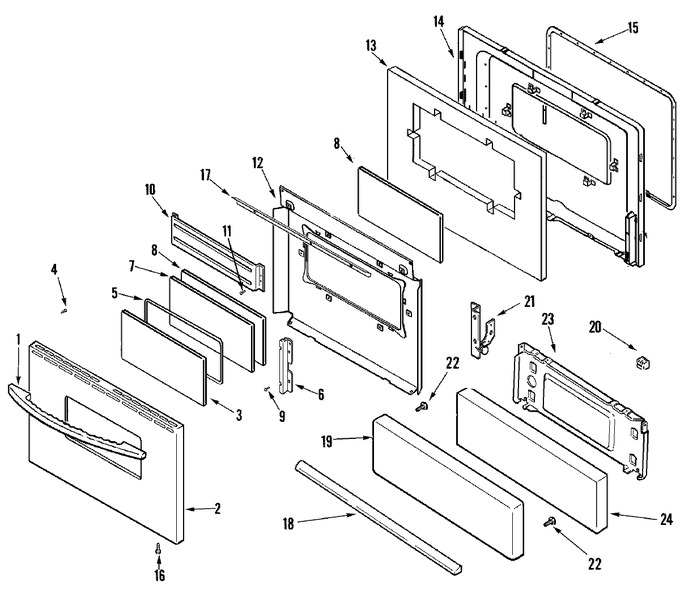

02 - Door (stl)


03 - Gas Controls


04 - Oven/base


05 - Supplemental Information


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74006293		Handle, Door (blk)	10	Appelez-nous	-
2	74006847		Panel, Door (lwr-stl)	10	Appelez-nous	-
3	74001072		Glass, Outer Door (blk)	10	Appelez-nous	-
4	74001521		Washer (1``)	10			$ 5.27
4	WP74006515		Screw (10abxpan Zn)   (Replaces: 74006295)	10			$ 7.29
5	7201P017-60		Gasket, Window	10			$ 52.69
6	74003048		Retainer, Glass	10	Appelez-nous	-
7	74002002		Glass, Inner	10			$ 62.17
8	74003320		Glass, Inner	10			$ 86.35
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74005458		Baffle, Door (secondary)	10	Appelez-nous	-
11	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	10		Immediately	$ 6.85
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74009528		Baffle, Oven Door	10	Appelez-nous	-
13	74001842		Insulation, Door	10	Appelez-nous	-
14	74004972		Lining, Oven Door	10	Appelez-nous	-
15	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74004902		Baffle, Auxiliary	10	Appelez-nous	-
17	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
18	WP2411F013-70		Handle, Door (blk)   (Replaces: 74007087)	10			$ 186.01
19	74002551		Panel, Drawer (blk)	10	Appelez-nous	-
20	74001663		Glide	10	Appelez-nous	-
21	74007560		Hinge, Drawer	10			$ 61.30
22	WPW10068250		Screw   (Replaces: 74009897)	10			$ 3.66
23	74007553		Lining, Drawer	10	Appelez-nous	-
24	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
