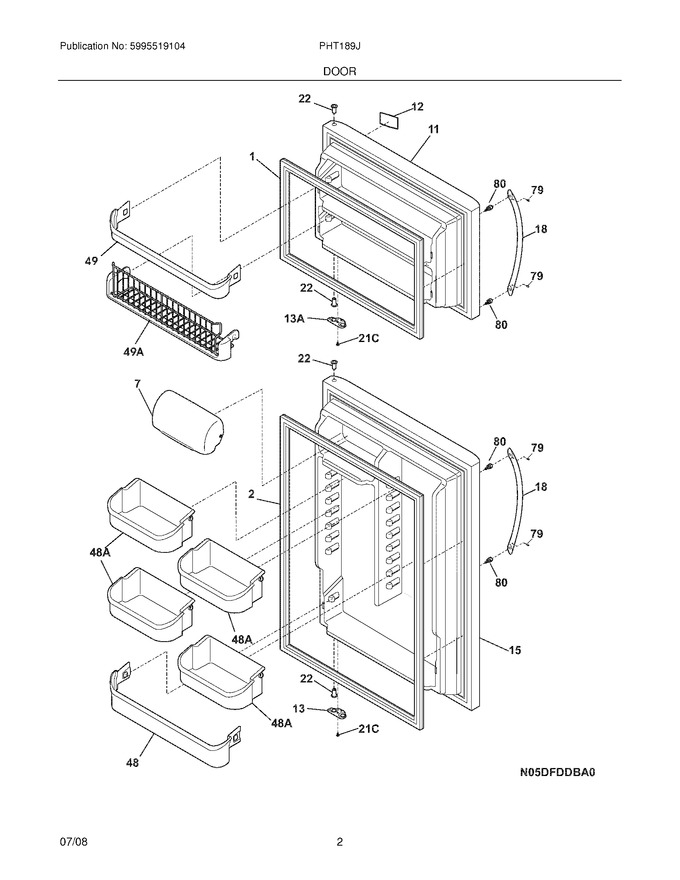

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear			Immediately	$ 80.80
11	241623302		Door,frzr ,stainless Steel ,lh				$ 486.63
12	242015101		Label-nameplate   (Replaces: 241808801)				$ 4.55
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
15	241623402		Door,refr ,stainless Steel ,lh				$ 613.98
18	240536819		Handle-door,stainless Steel				$ 131.40
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495805		Bin-door,pseudo ,frzr				$ 50.94
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr   (Replaces: 240312406)				$ 21.27
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door,gallon   (Replaces: 240338202)			Immediately	$ 79.97
48A	241779601		Liner,bin				$ 22.42
49A	241801402		Bin-tilt Out,tilt-out		Appelez-nous	-
F1	241872503		Gasket-frzr Door,white ,magnetic			Immediately	$ 137.66
F2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 241872506)			Immediately	$ 190.22
NI	241601001		Wrench,allen		Appelez-nous	-
