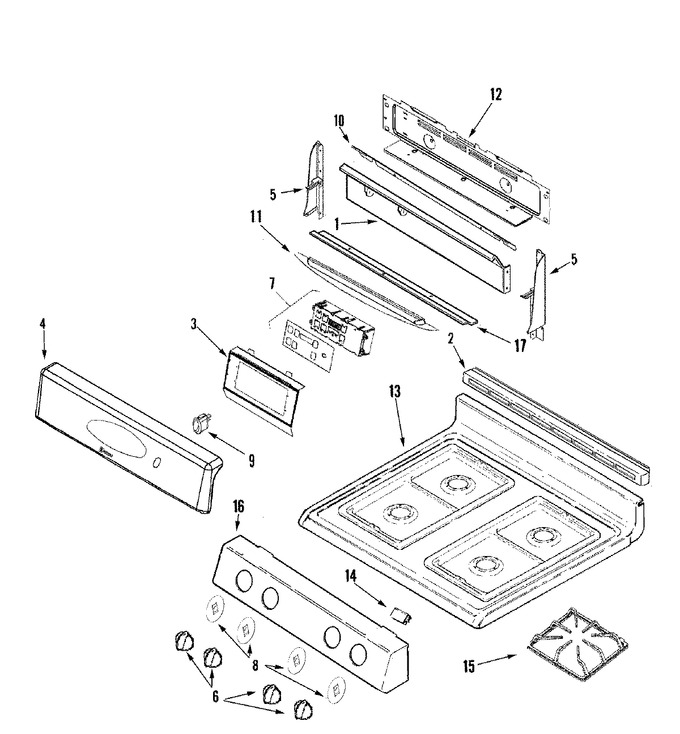

01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74009779 | Shield, Vent Deflector | 10 |
|
- | ||||
| 2 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 2 | 74009797 | Trim, Vent (blk) | 10 |
|
- | ||||
| 3 | 74009052 | Bracket, Clock | 10 |
|
- | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 4 | 74009835 | Panel, Backguard (wht) | 10 |
|
- | ||||
| 5 | 74009669 | Support, Backguard (wht-lt) | 10 |
|
- | ||||
| 5 | 74009672 | Support, Backguard (wht-rt) | 10 |
|
- | ||||
| 5 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 5 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 6 | WP74009775 | Knob (wht) (Replaces: 74009775) | 10 |
|
$ 20.48 | ||||
| 7 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 7 | 74009883 | Clock W/overlay (bsq) | 10 |
|
- | ||||
| 8 | 74009846 | Insert, Knob | 10 |
|
- | ||||
| 9 | WP74010226 | Switch, Rocker (wht) (Replaces: 74008938) | 10 |
|
$ 86.45 | ||||
| 10 | 74009708 | Shield, Wire | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74009799 | Shield, Vent (wht) | 10 |
|
- | ||||
| 11 | 74009802 | Screw, (8 X 1/4) (wht) | 10 |
|
- | ||||
| 12 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 12 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | 74006536 | Cover, Wire (2 5/8`` X 2) | 10 |
|
- | ||||
| 13 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 13 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 10 |
|
$ 9.48 | ||||
| 13 | 74003512 | Top, Main (wht) | 10 |
|
- | ||||
| 14 | 74004827 | Clip, Top Locking | 10 |
|
- | ||||
| 15 | 74001769 | Grate, Burner (blk) | 10 |
|
$ 74.59 | ||||
| 16 | 74009829 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 17 | 74002447 | Shield, Sight | 10 |
|
- | ||||
| 17 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 |
