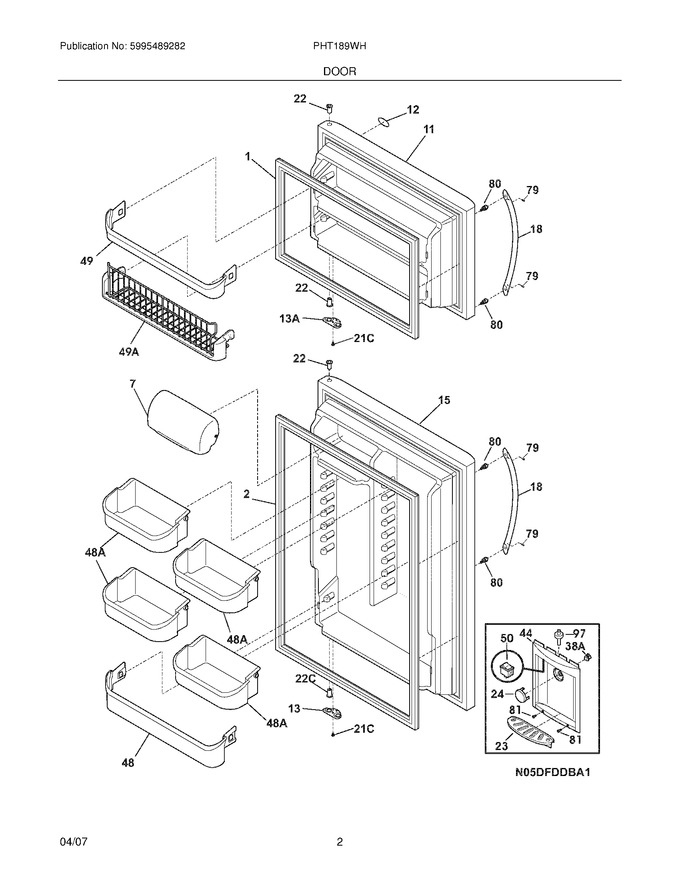

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872503 | Gasket-frzr Door,white ,magnetic (Replaces: 240542115) |
|
Immediately | $ 137.66 | ||||
| 2 | 242193213 | Gasket-refr Door,white ,magnetic (Replaces: 240542118) |
|
Immediately | $ 190.22 | ||||
| 7 | 240338313 | Door,dairy ,clear |
|
Immediately | $ 80.80 | ||||
| 11 | 241623302 | Door,frzr ,stainless Steel ,lh |
|
$ 486.63 | |||||
| 12 | 242015101 | Label-nameplate (Replaces: 241808801) |
|
$ 4.55 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 15 | 241623432 | Door-refr,stainless ,complete Assy |
|
$ 454.17 | |||||
| 18 | 240536803 | Handle-door,stainless Steel ,with Insert |
|
$ 234.70 | |||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 23 | 241553305 | Drip Tray,silver Mist |
|
- | |||||
| 24 | 241553605 | Actuator-water,light Grey |
|
- | |||||
| 44 | 241553405 | Cover-module,light Grey |
|
- | |||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495805 | Bin-door,pseudo ,frzr |
|
$ 50.94 | |||||
| 50 | 241611104 | Switch-rocker,black |
|
$ 44.56 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 81 | 5304453707 | Screw-no.8-18 X 1/2,no.6 Hd Plask (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| 97 | 241603401 | Valve-check |
|
$ 55.70 | |||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 21.27 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 22C | 240328402 | Bearing-hinge,natural ,upper |
|
$ 19.85 | |||||
| 38A | 241610101 | Switch-actuator |
|
$ 59.85 | |||||
| 48A | 241808201 | Bin-door,gallon (Replaces: 240338202) |
|
Immediately | $ 79.97 | ||||
| 49A | 241801402 | Bin-tilt Out,tilt-out |
|
- | |||||
| F48A | 241779601 | Liner,bin |
|
$ 22.42 | |||||
| NI | 241623201 | Harness-wiring,door |
|
$ 29.11 | |||||
| NI | 218490901 | Cleaner,stainless Steel |
|
$ 5.58 | |||||
| NI | 240545201 | Connector-water,straight (Replaces: 240352102) |
|
$ 73.71 | |||||
| NI | 241609901 | Harness-wiring |
|
- | |||||
| NI | 241623001 | Harness-wiring |
|
$ 23.63 | |||||
| NI | 241601001 | Wrench,allen |
|
- |
