Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3018822 Glass Front - Black Appelez-nous -
2 5303131256 Handle, Oven Door Appelez-nous -
3 5303209318 Liner-oven Door Appelez-nous -
4 5303131601 Seal S/c Door Special Order $ 374.63

5 5303209317 Shield-wool Appelez-nous -
6 5303211058 Trim-oven Door Appelez-nous -
8 3016851 Screw, Handle (2) Appelez-nous -
9 5303209514 Insulation-oven Door Appelez-nous -
*52107 5303212762 Screw 8 X 18 X 1/2`` Appelez-nous -
8A 5303212674 Fstnr-nylon Spacer (non-illustrated) Appelez-nous -
8B 5303271648 Screw 8 X 18 X 1/2 (non-illustrated) In-Stock Immediately $ 13.46


    View Diagram in Separate Window     Print Icon   Print Part List

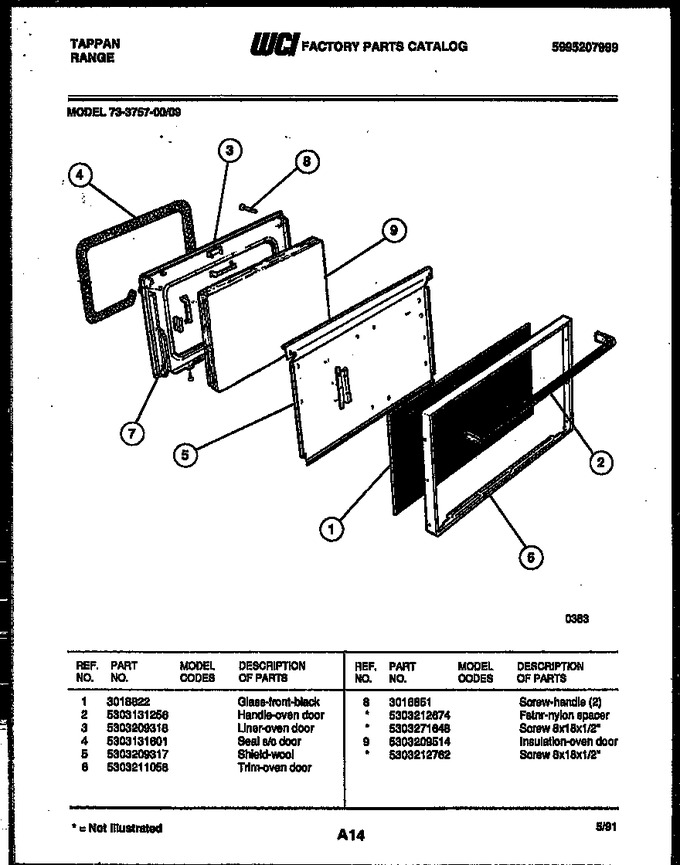

Diagram for 73-3757-00-09
