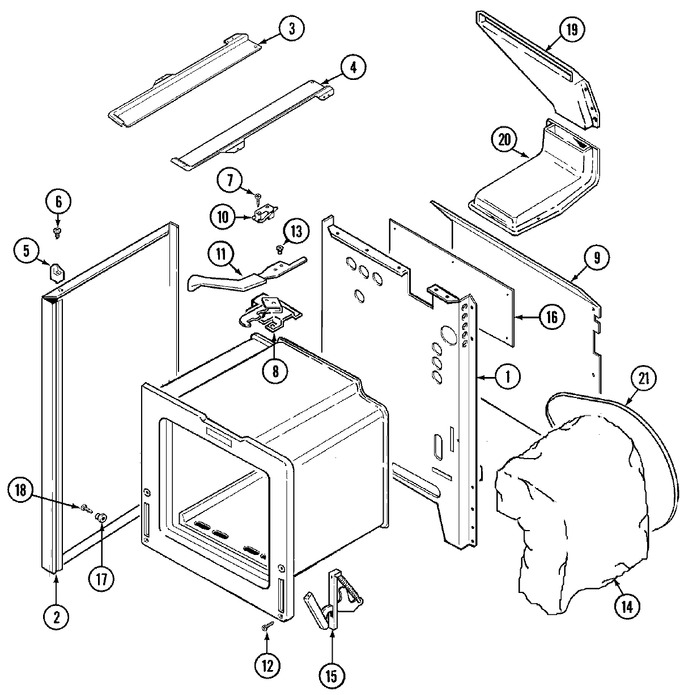

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005216		Back, Main	10	Appelez-nous	-
1	74006548		Back, Main	12	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	8008P021-60		Grommet, Snap	10	Appelez-nous	-
1	W11577436		Grommet   (Replaces: 8008P010-60)	12	Appelez-nous	-
2	74003236		Panel, Side (wht)	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
3	74002633		Box, Burner (lt)	10	Appelez-nous	-
4	74002632		Box, Burner (rt)	10	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
6	7101P313-60		Screw (8abx3/8-zn)	10	Appelez-nous	-
7	7101P330-60		Screw, Switch	10	Appelez-nous	-
8	74003975		Screw (8abx3/8-blk)	10			$ 12.02
8	74006342		Retainer, Latch Insulation	10	Appelez-nous	-
8	74003502		Latch Assy.	10	Appelez-nous	-
8	74001084		Insulation, Door Latch	10	Appelez-nous	-
8	12001942		Door Latch Kit	13			$ 190.82
9	74003816		Cover, Main Back (wire)	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	W10124350		Not Required Part Or See Note Purchase Latch Kit For Switch	13	Appelez-nous	-
10	7003P063-60		Insulator, Door Lock Switch	10	Appelez-nous	-
10	74003383		Switch, Door Latch	10	Appelez-nous	-
11	74002974		Lever, Latch (gry)	10			$ 45.72
12	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
13	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	10			$ 4.29
14	74005771		Insulation, Oven Wrap	10	Appelez-nous	-
14	74003382		Insulation, Back/bottom	10	Appelez-nous	-
15	WP74011140		Hinge, Door   (Replaces: 74003243)	10		Immediately	$ 120.21
16	3604F165-51		Shield, Flue (lower)	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
18	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
18	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	10		Immediately	$ 12.65
19	4022W007-19		Extension, Flue Box	10	Appelez-nous	-
19	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
20	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
20	74006420		Box, Vent	10	Appelez-nous	-
21	74003385		Strap, Insulation	10	Appelez-nous	-
