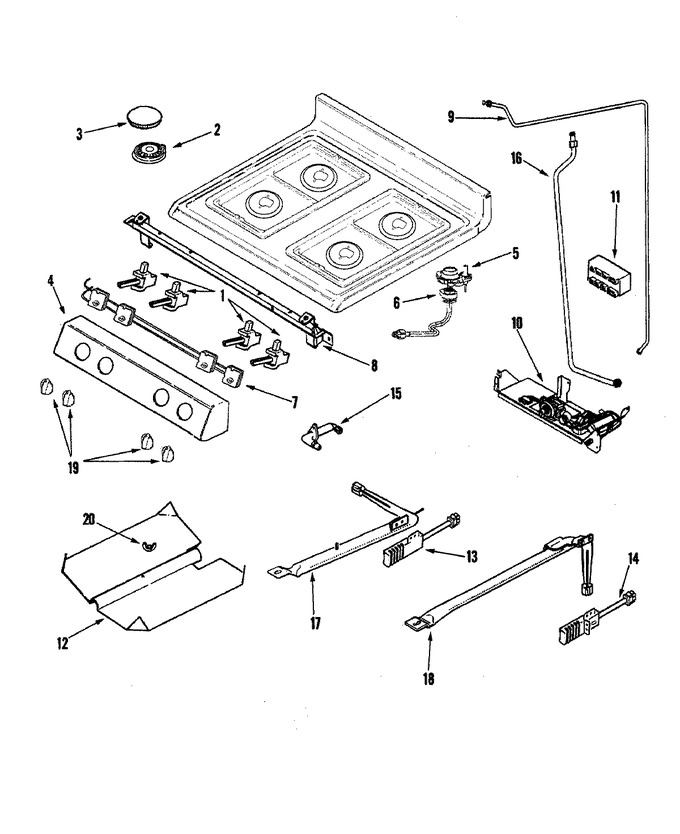

05 - Gas Controls
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010751 | Valve, 16k (copreci) | 11 |
|
$ 242.95 | ||||
| 1 | WP74009857 | Screw, T-stat/valve Mtg (Replaces: 74009857) | 11 |
|
$ 4.95 | ||||
| 1 | 12002237 | 16k, Sourdillion Valve & Screw | 10 |
|
$ 195.83 | ||||
| 1 | 12002236 | 12k, Sourdillion Valve & Screw | 10 |
|
$ 125.37 | ||||
| 1 | 74010752 | Valve, 12k (copreci) | 11 |
|
- | ||||
| 2 | W11772394 | Screw, Self Tapping (Replaces: 74007410) | 10 |
|
Immediately | $ 10.94 | |||
| 2 | WPW10406797 | Base, Burner (Replaces: 74007698) | 10 |
|
$ 79.64 | ||||
| 2 | WPW10406878 | Base, Burner (16k) (Replaces: 74007413) | 10 |
|
Immediately | $ 92.12 | |||
| 3 | WP74007752 | Cap, Burner (med-gry) (Replaces: 74007752) | 10 |
|
$ 98.17 | ||||
| 3 | WP74007420 | Cap, Burner (lrg-gry) (Replaces: 74007420) | 10 |
|
$ 112.29 | ||||
| 4 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 4 | 74009118 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 5 | WP74009958 | Ignitor, Top Burner Assy. (Replaces: 74009958) | 10 |
|
Immediately | $ 28.85 | |||
| 6 | 74009040 | Orifice Holder/tube Asy (rf) | 10 |
|
$ 30.47 | ||||
| 6 | 74008840 | Orifice Holder/tube Asy (rr) | 10 |
|
- | ||||
| 6 | 74009129 | Orifice Holder/tube Assy.(lr) | 10 |
|
- | ||||
| 6 | 74008838 | Orifice Holder/tube Asy (lf) | 10 |
|
- | ||||
| 7 | 74009394 | Harness, Spark Switch(4 Valve) | 10 |
|
$ 92.43 | ||||
| 7 | WP74010630 | Harness, Switch (Replaces: 74010630) | 11 |
|
Immediately | $ 213.06 | |||
| 8 | 12002421 | Kit, Supply Tube And Screw | 10 |
|
$ 201.09 | ||||
| 9 | 74008829 | Tubing, Supply | 10 |
|
- | ||||
| 10 | 74008808 | Valve/regulator Asy. W/harness | 10 |
|
- | ||||
| 11 | 74008821 | Module, Spark | 10 |
|
$ 212.63 | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 3601P336-45 | Baffle, Broil Burner (Replaces: 74008819) | 10 |
|
$ 194.65 | ||||
| 13 | 74007498 | Igniter, Oven | 10 |
|
Immediately | $ 78.40 | |||
| 13 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 14 | WP7432P136-60 | Ignitor, Fs Bake/broil (Replaces: 74008064) | 10 |
|
Immediately | $ 84.62 | |||
| 14 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74008818 | Fitting, Broil Burner | 10 |
|
$ 73.73 | ||||
| 16 | 74008830 | Tubing, Broil | 10 |
|
$ 74.95 | ||||
| 17 | 74008820 | Burner, Broil | 10 |
|
- | ||||
| 18 | 31945701 | Burner, Bake | 10 |
|
- | ||||
| 19 | WP74009775 | Knob (wht) (Replaces: 74009775) | 10 |
|
$ 20.48 | ||||
| 20 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 |
