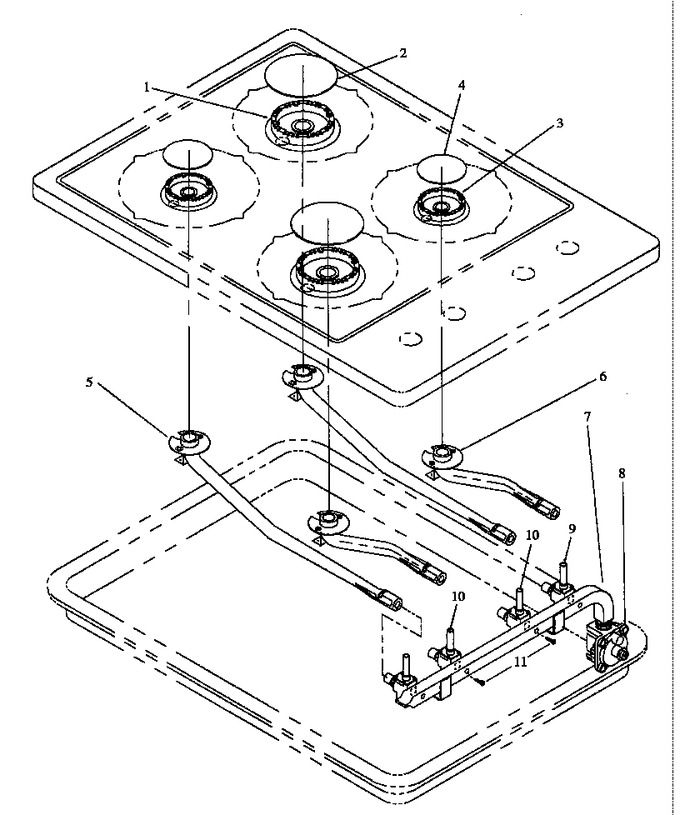

SELECT A DIAGRAM

01 - Chassis Components


02 - Electrical Components


03 - Gas Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0307339		Burner, 4`` Die Cast		Appelez-nous	-
2	305818T		Burner Cap, Large (lt Gray)		Appelez-nous	-
3	Y0307338		Burner, 3`` Die Cast		Appelez-nous	-
4	305817T		Burner Cap, Small (lt Gray)		Appelez-nous	-
5	0308245		Tube, Venturi (lh)		Appelez-nous	-
6	Y0308246		Tube, Venturi (rh)		Appelez-nous	-
7	Y0308251		Assy, Manifold Pipe		Appelez-nous	-
8	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
9	Y0308253		Valve, 180 Degree		Appelez-nous	-
10	Y0308252		Valve, 180 Degree		Appelez-nous	-
11	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
NI	WP8281227		Tapng Scrw 8 32x3/8 Hex Hd   (Replaces: Y0041792)				$ 9.40
NI	Y0041813		Screw Cabinet Trim		Appelez-nous	-
NI	8169479		Screw, No.8-18 X 1/2 P Flt Hd   (Replaces: Y0041811)				$ 6.26
NI	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
NI	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
NI	Y0079357		Screw, No.10-24x3/8 (ph Trs Hd)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
