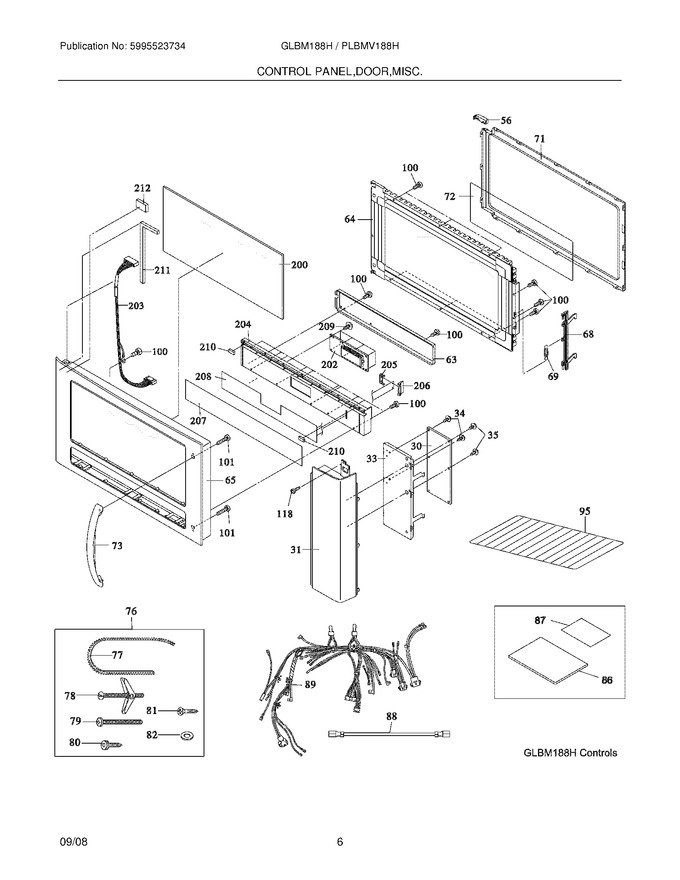

05 - Control Panel,door,misc.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 31 | 5304468923 | Cover,control Board ,stainless |
|
$ 156.01 | |||||
| 33 | 5304467787 | Panel,control Mount |
|
$ 37.24 | |||||
| 34 | 5304467710 | Screw,3 Mm X 8 Mm |
|
$ 14.18 | |||||
| 35 | 5304456930 | Screw,3 Mm X 10 Mm |
|
- | |||||
| 56 | 5304463156 | Door Stop |
|
$ 32.56 | |||||
| 63 | 5304467788 | Cover,control Display |
|
$ 31.77 | |||||
| 64 | 5304467789 | Panel,inner Door |
|
$ 207.64 | |||||
| 65 | 5304468926 | Frame Assembly,door ,stainless |
|
- | |||||
| 68 | 5304467798 | Latch,door |
|
$ 33.86 | |||||
| 69 | 5304440316 | Spring,door Latch |
|
Immediately | $ 61.00 | ||||
| 71 | 5304467802 | Frame,choke Cover ,inner Door |
|
$ 89.85 | |||||
| 72 | 5304467803 | Seal,door ,film |
|
$ 24.53 | |||||
| 73 | 5304468927 | Handle,door ,stainless |
|
- | |||||
| 76 | 5304464349 | Hardware Kit,installation (Replaces: 5304467765) |
|
Immediately | $ 57.11 | ||||
| 77 | 5303318761 | Sleeve,power Cord ,grommet |
|
$ 25.05 | |||||
| 78 | 5303318762 | Screw,toggle |
|
$ 11.71 | |||||
| 79 | 5304453895 | Screw,5mm X 85mm |
|
$ 16.68 | |||||
| 80 | 5304502863 | Screw,4 Mm X 8 Mm ,white (Replaces: 5304451552) |
|
$ 10.85 | |||||
| 81 | 5304453723 | Screw,5mm X 35mm |
|
$ 13.28 | |||||
| 82 | 5304453724 | Washer |
|
$ 12.68 | |||||
| 86 | 5304467832 | Template,installation ,top |
|
$ 19.52 | |||||
| 87 | 5304467833 | Template,installation ,wall |
|
- | |||||
| 95 | 5304463180 | Rack,microwave Oven ,wire |
|
$ 123.33 | |||||
| 100 | 5304468930 | Screw,4 Mm X 10 Mm |
|
- | |||||
| 101 | 5304468931 | Screw |
|
$ 9.83 | |||||
| 118 | 5304451553 | Screw,4 Mm X 12 Mm |
|
$ 14.89 | |||||
| 200 | 5304468933 | Glass,door ,stainless |
|
- | |||||
| 204 | 5304468939 | Frame,control Panel ,black |
|
$ 66.31 | |||||
| 205 | 5304468940 | Connector,ribbon Cable ,left |
|
$ 17.11 | |||||
| 206 | 5304468941 | Connector,ribbon Cable ,right |
|
$ 17.36 | |||||
| 207 | 5304468942 | Overlay,touch Control ,black |
|
- | |||||
| 209 | 5304452259 | Screw |
|
- | |||||
| 210 | 5304468944 | Cushion,pad ,control Panel |
|
$ 3.80 | |||||
| F202 | 5304468938 | Display,digital |
|
- | |||||
| F203 | 5304467830 | Wiring Harness,control-a ,w/ground Wire |
|
$ 109.16 | |||||
| F208 | 5304468943 | Touch Control,key Pad |
|
- | |||||
| F30 | 5304468922 | Control Board,printed Circuit |
|
- | |||||
| F88 | 5304467828 | Wire,ground |
|
- | |||||
| F89 | 5304468945 | Wiring Harness,main |
|
- |
