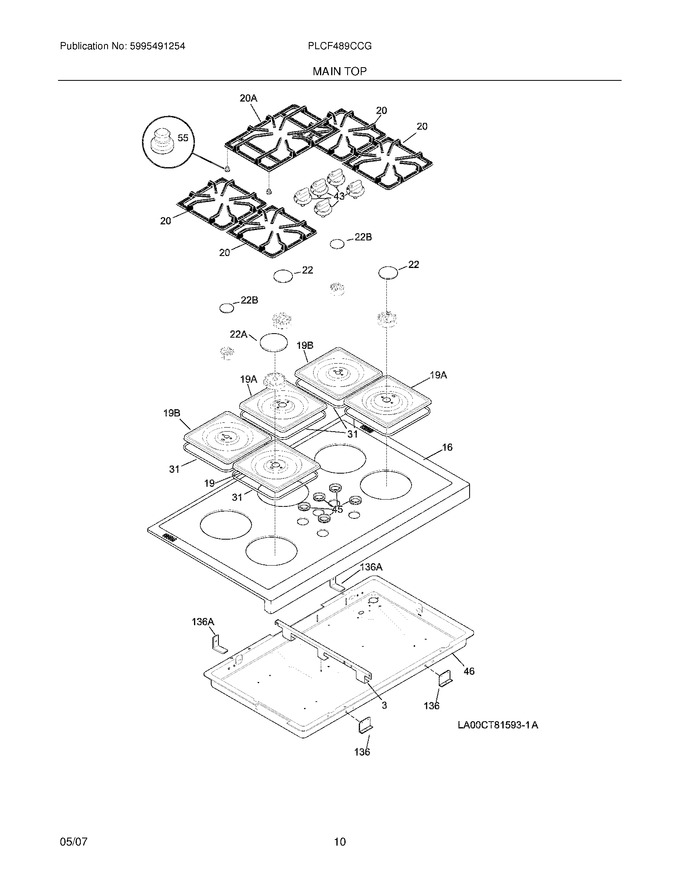

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171401		Support		Appelez-nous	-
16	318159604		Maintop,glass		Appelez-nous	-
19	318168114		Pan,burner ,black ,medium				$ 151.68
20	318226900		Grate,black ,(4)		Appelez-nous	-
22	316213500		Cap,9.5k Burner ,black				$ 43.23
31	318053901		Gasket,burner Pan				$ 33.60
43	318099100		Knob,control ,black ,(5)				$ 123.62
45	318146211		Bushing,black				$ 16.22
46	318077002		Box,burner		Appelez-nous	-
55	318096700		Spacer,center Grate		Appelez-nous	-
136	318180301		Bracket,box		Appelez-nous	-
19A	318168124		Pan,burner ,black ,large				$ 140.67
19B	318168104		Pan,burner ,black ,small				$ 155.93
20A	318227100		Grate,black ,center		Appelez-nous	-
22A	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22B	318076400		Cap,burner ,black ,small Rr				$ 25.66
F136	318181101		Bracket		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
