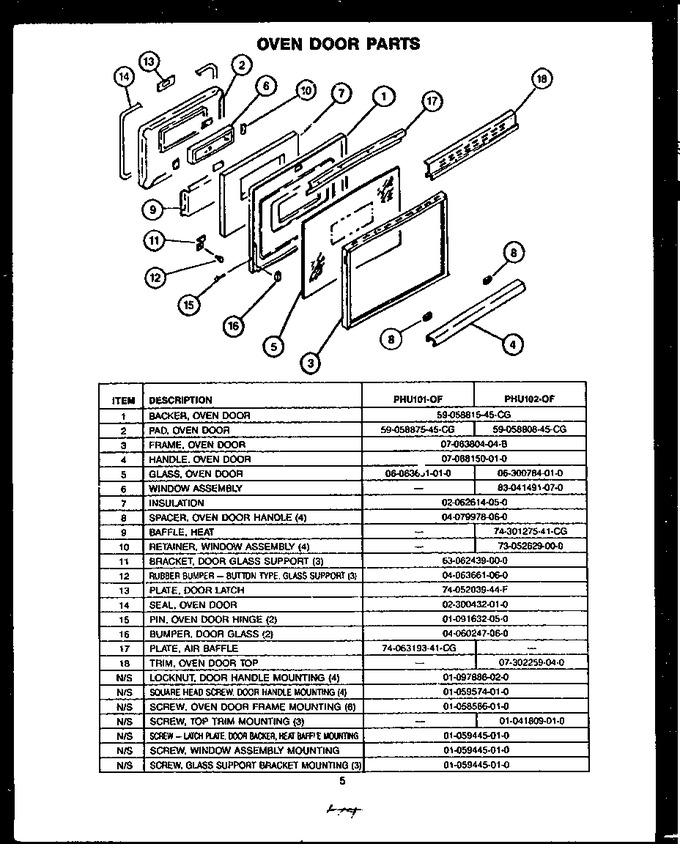

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124803		Backer, Oven Door		Appelez-nous	-
2	W10124804		Pad, Oven Door		Appelez-nous	-
3	0063804		Frame, Door, Black		Appelez-nous	-
4	0068150		Handle, Door		Appelez-nous	-
5	0063651		Panel, Oven Door Glass		Appelez-nous	-
7	0062614		Insulation,door-sub Backer		Appelez-nous	-
8	Y0079978		Spacer Door Handle		Appelez-nous	-
11	Y0062439		Support Bracket, Glass		Appelez-nous	-
12	Y0063661		Bumper, Oven Door		Appelez-nous	-
13	Y0052039		Latch Plate		Appelez-nous	-
14	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
15	0091632		Rivet		Appelez-nous	-
16	Y0060247		Bumper, Rubber		Appelez-nous	-
17	0063193		Plate, Air Baffle		Appelez-nous	-
NI	0059574		Screw, Square		Appelez-nous	-
NI	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
NI	Y0058586		Screw {j}		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
