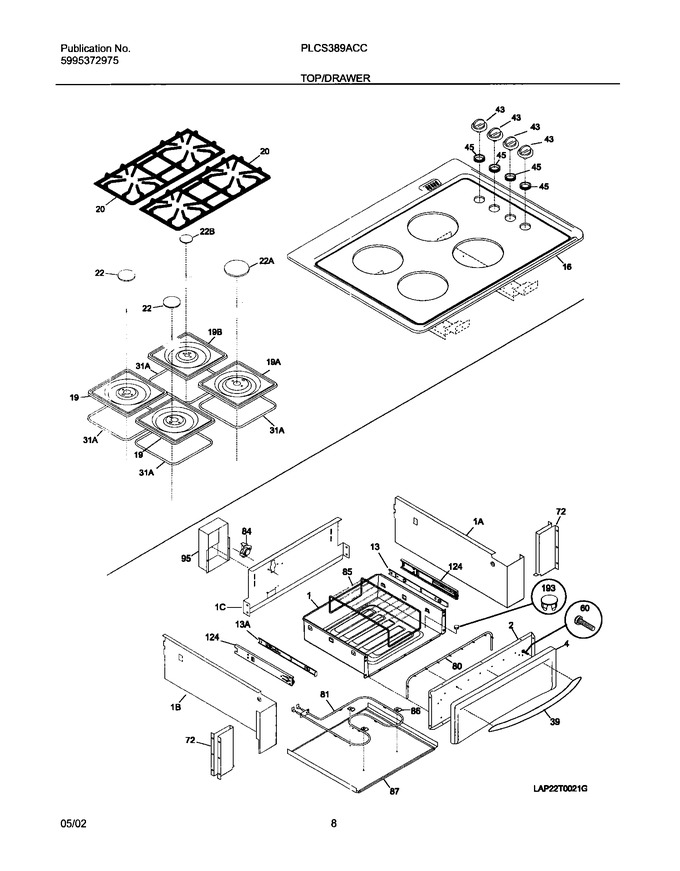

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108025		Liner,drawer		Appelez-nous	-
4	318107903		Panel,drawer ,stainless		Appelez-nous	-
13	318259507		Glide-warmer,inner Rh   (Replaces: 316105602)			Immediately	$ 69.01
16	318079223		Main Top,glass ,black		Appelez-nous	-
19	318168114		Pan,burner ,black ,medium				$ 151.68
20	318120402		Grate		Appelez-nous	-
22	316213500		Cap,burner ,black ,medium Lf & Lr   (Replaces: 318076410)				$ 43.23
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
43	318196141		Knob,control ,black				$ 106.32
45	318146210		Bushing		Appelez-nous	-
60	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
72	318113402		Bracket-slide,(2)		Appelez-nous	-
80	318054300		Gasket,warmer Drawer		Appelez-nous	-
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318121503		Base-warmer		Appelez-nous	-
95	318143702		Cover,wire		Appelez-nous	-
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
193	5303325173		Cap-plug		Appelez-nous	-
13A	318259507		Glide,warmer ,inner Lh   (Replaces: 316105601)			Immediately	$ 69.01
19A	318168124		Pan,burner ,black ,large				$ 140.67
19B	318168104		Pan,burner ,black ,small				$ 155.93
1A	318143335		Deflector,warmer Drawer ,rh		Appelez-nous	-
1B	318143334		Deflector,warmer Drawer ,lh		Appelez-nous	-
1C	318143203		Deflector,warmer Drawer ,rear		Appelez-nous	-
22A	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22B	318076400		Cap,burner ,black ,small Rr				$ 25.66
31A	318053901		Gasket,burner Pan				$ 33.60
F81	318255301		Element,warmer Drawer   (Replaces: 318112400)				$ 105.42
F84	318005103		Thermostat,safety				$ 159.51
NI	5304400795		Bushing,snap-in ,nylon		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27

    View Diagram in Separate Window       Print Part List
