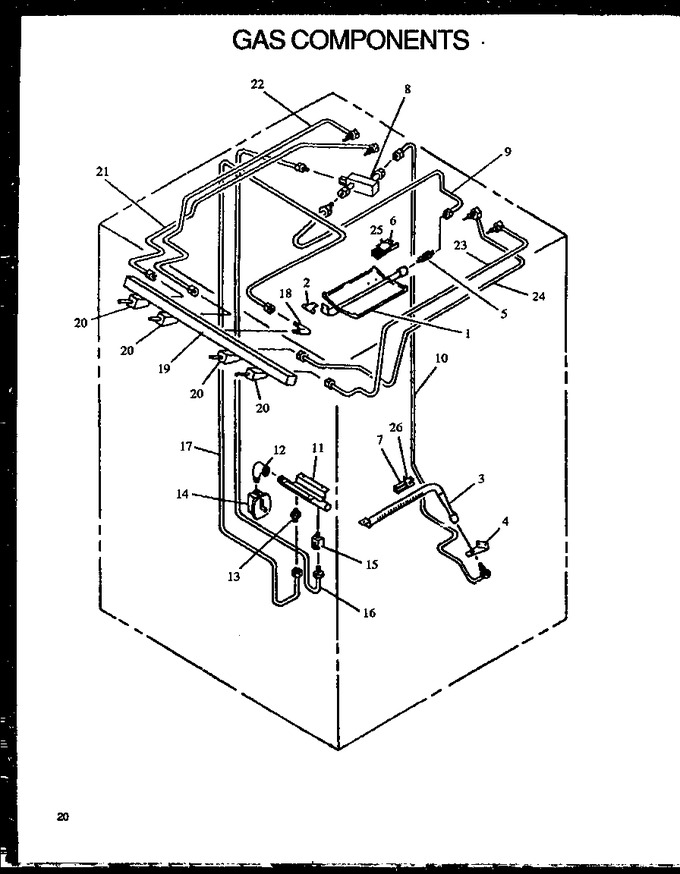

02 - Gas Components


03 - Main Top And Oven Assy


04 - Oven Cabinet Assy


05 - Oven Door Assy


06 - Page 8


07 - Storage Drawer Parts


08 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0041915		Rivet Type Cherry N		Appelez-nous	-
1	0300070		Broil Burner		Appelez-nous	-
1	Y0054043		Reflector, Broil		Appelez-nous	-
2	0300072		Support, Broil Burner		Appelez-nous	-
3	Y0063709		Oven Burner		Appelez-nous	-
4	0307176		Brkt, Oven Orifice		Appelez-nous	-
5	0302628		Orifice Broil Burner-no.52		Appelez-nous	-
6	Y0060756		Assy, Svc Ignitor		Appelez-nous	-
7	786324		Kit, Ignitor-bake/broil   (Replaces: Y0087699)			Immediately	$ 60.68
8	Y0302706		Valve, Gas, Dual		Appelez-nous	-
9	0301744		Tubing, Gas		Appelez-nous	-
10	0307395		Tubing, Bake Orifice-no.51		Appelez-nous	-
11	0303976		Pipe, Manifold		Appelez-nous	-
12	0073084		Elbow		Appelez-nous	-
13	Y0301263		Fitting, 1/8``x 3/8``		Appelez-nous	-
14	0302495		Pressure Regulator		Appelez-nous	-
15	Y0301361		Valve, Shut-off		Appelez-nous	-
16	0301743		Tubing Shut Off To Gas Valve		Appelez-nous	-
17	0308333		Tubing, Inlet Manifold		Appelez-nous	-
18	Y0303219		Fitting 1/4 Npt X 3/8 Comp		Appelez-nous	-
19	0308150		Manifold Pipe		Appelez-nous	-
20	0308165		Valve, Top Burner		Appelez-nous	-
21	0308146		Tubing, Orifice L.f.-no.55		Appelez-nous	-
22	Y0308147		Tubing, Orifice L.r.-no.55		Appelez-nous	-
23	0308149		Tubing, Orifice R.f.-no.56		Appelez-nous	-
24	Y0308148		Tubing, Orifice R.r.-no.56		Appelez-nous	-
25	Y0301556		Shield, Broiler Ignitor		Appelez-nous	-
26	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-
NI	Y0300090		Brkt., Gas Valve Mtg.		Appelez-nous	-
NI	WP90767		Screw, Sm   (Replaces: Y0041816)			Immediately	$ 7.04
NI	Y0061441		Surface Valve Bolt& Gasket		Appelez-nous	-
