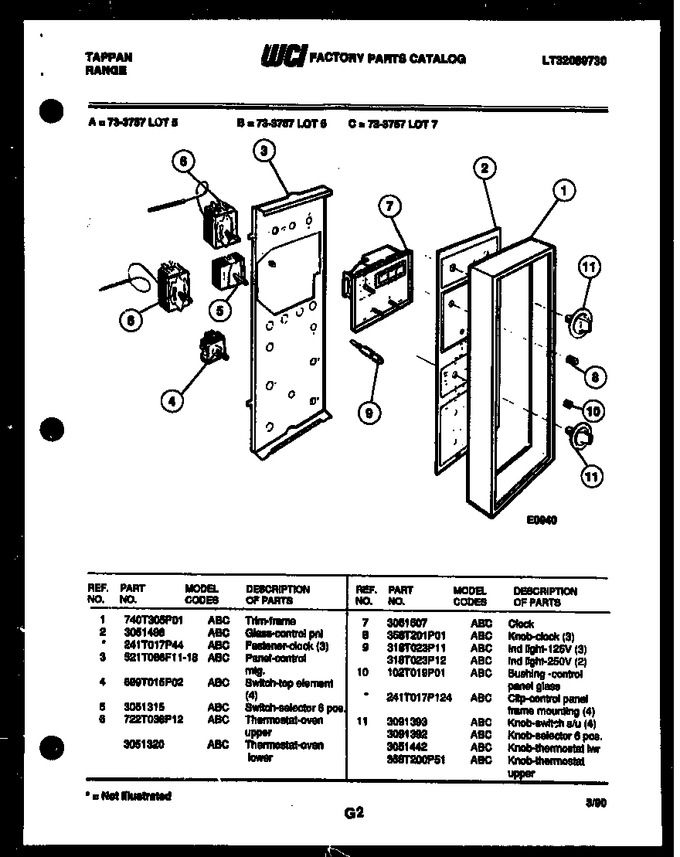

02 - Control Panel


03 - Splasher Control


04 - Cooktop Parts


05 - Upper Oven Door Parts


06 - Lower Oven Door Parts


07 - Broiler Parts


08 - Upper Body Parts


09 - Lower Body Parts


10 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	740T305P01		Trim, Frame		Appelez-nous	-
2	3051496		Glass-control Pnl		Appelez-nous	-
3	521T086F11-18		Panel-control Mtg.		Appelez-nous	-
4	699T015P02		Switch, Top Element (4)		Appelez-nous	-
5	3051315		Switch-selector 6 Pos.		Appelez-nous	-
6	722T038P12		Thermostat-oven Upper		Appelez-nous	-
7	3051507		Clock		Appelez-nous	-
8	358T201P01		Knob, Clock (3)		Appelez-nous	-
9	318T023P11		Ind Light-125v (3)		Appelez-nous	-
10	102T019P01		Bushing, Control Panel Glass		Appelez-nous	-
11	3091393		Knob-switch S/u (4)		Appelez-nous	-
10A	241T017P124		Clip, Control Panel Frame Mounting (4) (non-illustrated)		Appelez-nous	-
11A	3091392		Knob-selector 6 Pos.		Appelez-nous	-
11B	3051442		Knob-thermostat Lwr		Appelez-nous	-
11C	358T200P51		Knob, Thermostat, Upper		Appelez-nous	-
2A	241T017P44		Fastener-clock (3) (non-illustrated)		Appelez-nous	-
6A	3051320		Thermostat, Oven Lower		Appelez-nous	-
9A	318T023P12		Ind Light-250v (2)		Appelez-nous	-
