SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Ice Maker


05 - Unit Compartment & System

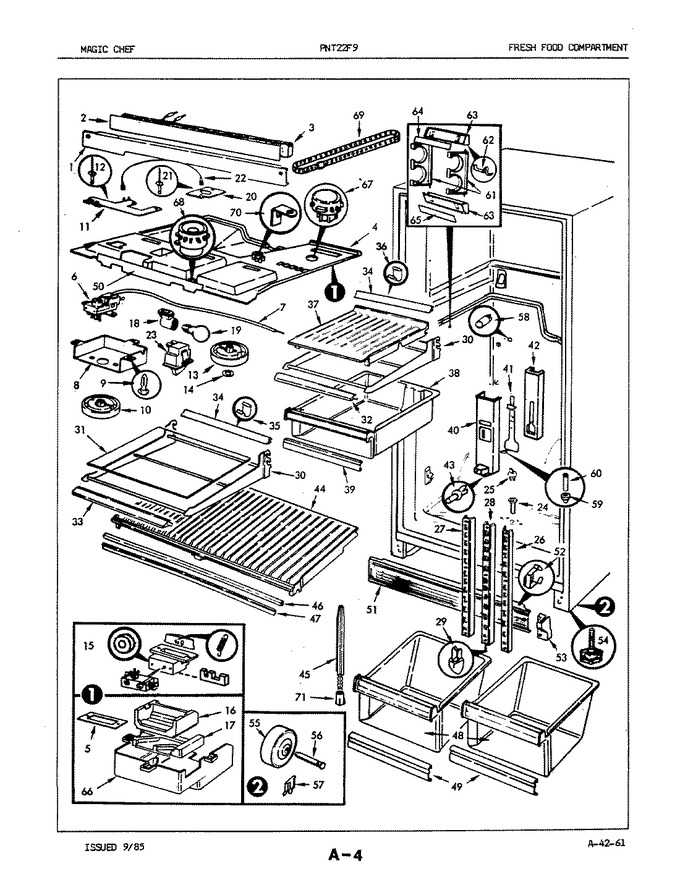

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60020-9-AM		Mullion		Appelez-nous	-
1	9986-117		Screw		Appelez-nous	-
2	60105-9		Heater Wire		Appelez-nous	-
3	60560-3		Wire Harness		Appelez-nous	-
3	60140-3		Insulation		Appelez-nous	-
4	65765-1		Top, F.f. Compartment		Appelez-nous	-
5	65620-1		Seal		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
6	52881-50		Control, Temperature		Appelez-nous	-
7	4008-12		Plastic Tube		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	WP3196163		Screw   (Replaces: 402068-103)				$ 6.26
10	60061-7		Knob		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	60061-8		Knob		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
15	62888-4		Sealer		Appelez-nous	-
15	60681-1		Damper Control		Appelez-nous	-
16	60658-1		Insulation		Appelez-nous	-
17	60659-1		Insulation		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	29675-22		Ground Wire		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-28		Ground Wire		Appelez-nous	-
23	55732-3		Switch		Appelez-nous	-
23	60131-6		Foil Switch, Reflector		Appelez-nous	-
24	54531-8		Grommet		Appelez-nous	-
25	65039-1		Cap, Drain Tube		Appelez-nous	-
26	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
27	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
28	400037-1		Screw		Appelez-nous	-
28	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
29	60340-1		End Cap, Center Rail		Appelez-nous	-
30	60570-4		Frame, Shelf		Appelez-nous	-
31	65598-4		Glass Shelf		Appelez-nous	-
32	60414-6		Trim		Appelez-nous	-
33	60524-5		Trim		Appelez-nous	-
34	65276-7		Trim, Rear		Appelez-nous	-
35	65358-1		Clip		Appelez-nous	-
36	65358-2		Clip		Appelez-nous	-
37	60075-6		Cover, Meat Pan		Appelez-nous	-
38	60466-226		Pan, Meat		Appelez-nous	-
39	60132-11		Handle		Appelez-nous	-
40	60662-1		Mt Kpr Tunnel		Appelez-nous	-
41	60093-2		Damper, Air Tunnel		Appelez-nous	-
42	60660-1		Insulation		Appelez-nous	-
43	28013-2		Rivet, Air Tunnel		Appelez-nous	-
44	60019-8		Shelf, Crisper		Appelez-nous	-
45	12001957		Shelf Support   (Replaces: 65816-1)				$ 3.35
46	60454-3		Trim		Appelez-nous	-
47	60148-6		Seal		Appelez-nous	-
48	60457-256		Pan, Crisper		Appelez-nous	-
49	60132-3		Handle		Appelez-nous	-
50	60571-28		Insert		Appelez-nous	-
51	60138-12		Kickplate		Appelez-nous	-
52	60100-1		Clip, Kickplate				$ 5.85
53	60381-1		End Cap		Appelez-nous	-
53	402039-4		Screw		Appelez-nous	-
54	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
55	29834-2		Wheel		Appelez-nous	-
56	29835-2		Pin, Wheel		Appelez-nous	-
57	60216-1		Clip		Appelez-nous	-
58	19530-36		Nylon Nut		Appelez-nous	-
59	55512-1		Grommet		Appelez-nous	-
60	55513-3		Tube		Appelez-nous	-
61	56519-4		Rack, Wine		Appelez-nous	-
61	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
62	58057-1		Spring, Wine Rack		Appelez-nous	-
63	65689-1		Support, Wine Rack		Appelez-nous	-
64	65753-3		Insert		Appelez-nous	-
65	65753-14		Insert		Appelez-nous	-
66	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
66	60661-1		Damper Housing		Appelez-nous	-
67	60665-1		Damper Sprocket		Appelez-nous	-
68	60664-1		Knob Sprocket		Appelez-nous	-
69	60679-1		Belt		Appelez-nous	-
70	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
70	60680-1		Belt Retainer		Appelez-nous	-
71	12001957		Nut   (Replaces: 65818-1)				$ 3.35
