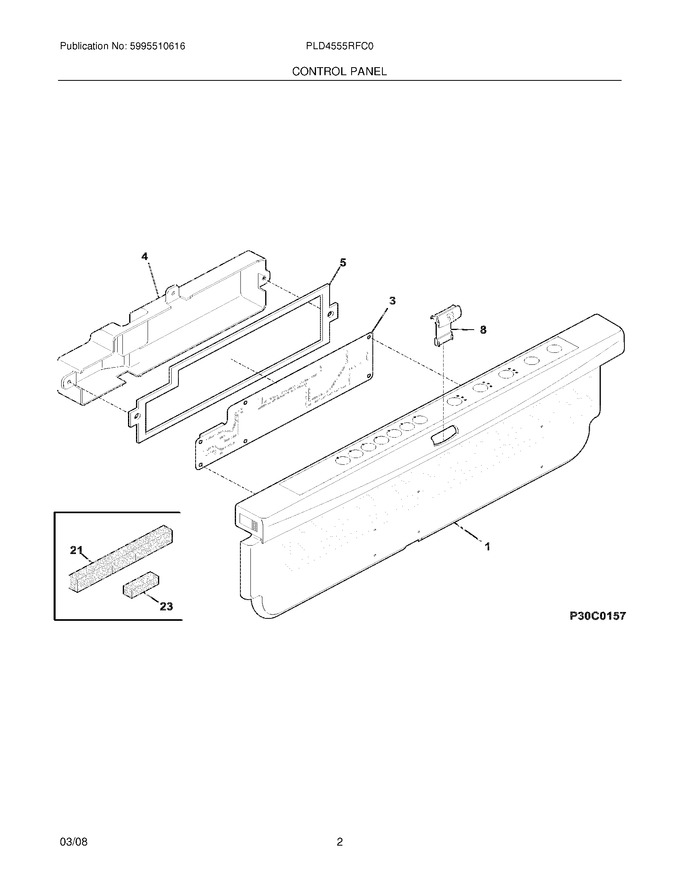

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	154554601		Cover,control				$ 25.62
5	154478901		Gasket,cover				$ 61.66
21	154596601		Insualtion,foam ,5.744/.717/.517 ,outer Console				$ 22.94
23	154592902		Insulation,foam ,1.5/.9/.09 ,console Rh				$ 22.95
F1	154639206		Console Panel,assembly ,stainless ,& Foam,w/overlay				$ 231.53
F3	154543601		Board,control		Appelez-nous	-
F8	154543401		Board,display				$ 76.63
FNI	5304476754		Harness,wiring ,main   (Replaces: 154570901)				$ 204.12
NI	154540031		Energy Guide Label		Appelez-nous	-
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
