SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls (pilot)
05 - Oven
06 - Top Assy.
SELECT A DIAGRAM
New Model Search:

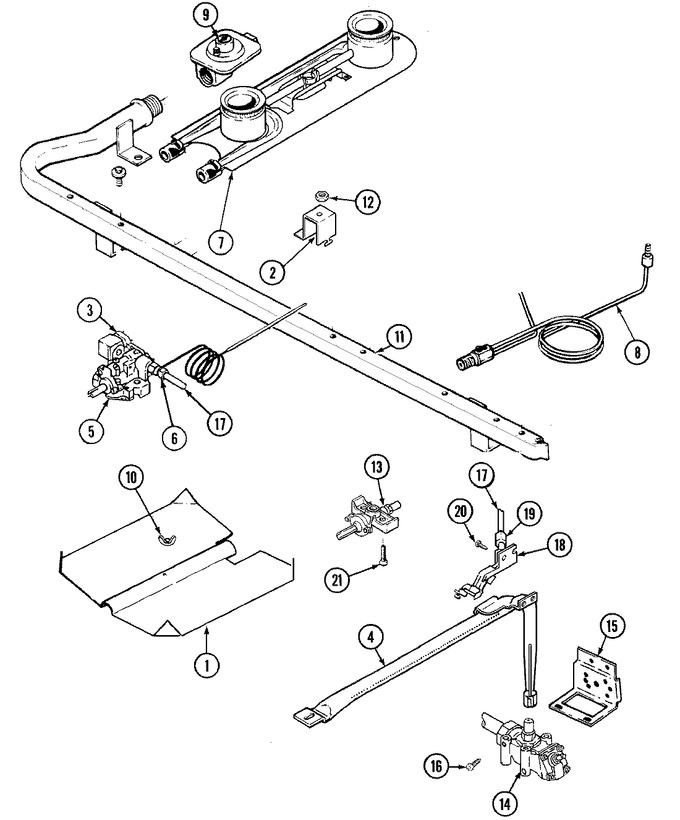

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F215-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 1 | 3601F099-45 | Baffle, Broil | 01 |
|
- | ||||
| 2 | 3807F204-34 | Support, Top Pilot | 01 |
|
- | ||||
| 3 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 4 | 3403D030-45 | Burner Assy., Oven | 01 |
|
- | ||||
| 5 | 7515P032-60 | Thermostat | 01 |
|
- | ||||
| 5 | 7101P010-60 | Screw, Control | 01 |
|
- | ||||
| 6 | 1555222 | Nut, Loxit (3/16``) | 01 |
|
- | ||||
| 7 | 3412A004-19 | Burner, Top | 01 |
|
- | ||||
| 8 | 7505P078-60 | Burner, Pilot | 01 |
|
- | ||||
| 8 | 7505P079-60 | Burner, Pilot | 01 |
|
- | ||||
| 9 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 10 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 11 | 7513P136-60 | Pipe Manifold | 01 |
|
- | ||||
| 12 | 7103P070-60 | Nut, Top Pilot | 01 |
|
- | ||||
| 13 | 7502P177-60 | Valve, Natural | 01 |
|
- | ||||
| 13 | 7502P179-60 | Valve Burner | 01 |
|
- | ||||
| 14 | 7501P110-60 | Valve, Oven | 01 |
|
- | ||||
| 14 | 7501P026-60 | Valve | 01 |
|
- | ||||
| 15 | 3807F418-34 | Support, Oven Valve | 01 |
|
- | ||||
| 16 | 7101P025-60 | Screw | 01 |
|
- | ||||
| 17 | 3414F061-44 | Tubing (3/16 X 50``) | 01 |
|
- | ||||
| 18 | 7432P068-60 | Lighter Pilot | 01 |
|
- | ||||
| 19 | 1555261K | Nut & Ferrule (3/16``) | 01 |
|
- | ||||
| 20 | WP4159193 | Screw (Replaces: 7101P067-60) | 01 |
|
$ 4.29 | ||||
| 21 | 7101P044-60 | Screw, Valve | 01 |
|
- |
