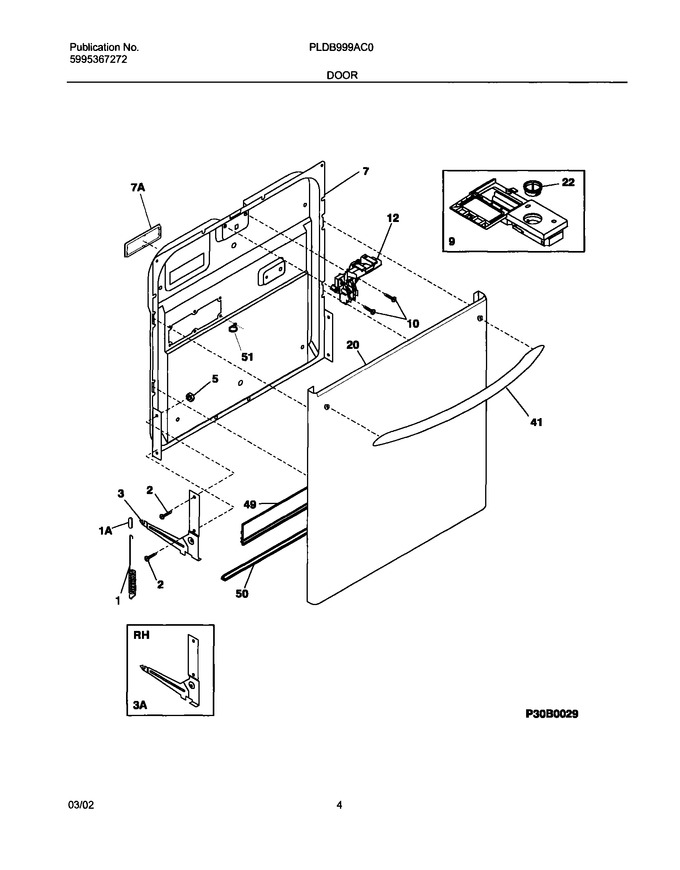

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154430601		Spring,door ,(2)   (Replaces: 154365701)			Immediately	$ 48.12
2	154093301		Screw,arm Assy ,(4)			Immediately	$ 2.12
3	5304409912		Arm Assy,lh   (Replaces: 154325304)				$ 59.54
5	154079601		Nut,arm Assy ,(4)				$ 0.41
7	154299002		Door-inner Assy		Appelez-nous	-
9	154230102		Dispenser,det/rinse Aid ,w/ Level Ind.		Appelez-nous	-
15	154103702		Screw-latch Mtg, (2)				$ 13.46
20	154359009		Door,stainless				$ 410.08
22	154388801		Cap,rinse Aid			Immediately	$ 26.03
41	154401801		Handle,towel Bar ,stainless Steal		Appelez-nous	-
49	809006501		Gasket-door,bottom   (Replaces: 154297602)			Immediately	$ 36.22
50	154211401		Support-door Hinge				$ 25.69
51	154320301		Clamp,drip Loop ,wire				$ 62.69
1A	154325201		Linkage,door Spring ,(2)			Immediately	$ 27.27
3A	5304409912		Arm Assy,rh   (Replaces: 154325303)				$ 59.54
7A	154226601		Grate-liner		Appelez-nous	-
F12	154211202		Latch Assy		Appelez-nous	-
NI	5304538695		Insulation,door   (Replaces: 154253201)		Appelez-nous	-
NI	154222201		Screw,shoulder				$ 3.17
NI	154293105		Handle,latch ,stainless		Appelez-nous	-
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	154400601		Pin,arm Assy		Appelez-nous	-
NI	154213801		Cleaner, Stainless Steel		Appelez-nous	-
NI	154200601		Screw,no.10-16 X 3/8				$ 7.98

    View Diagram in Separate Window       Print Part List
