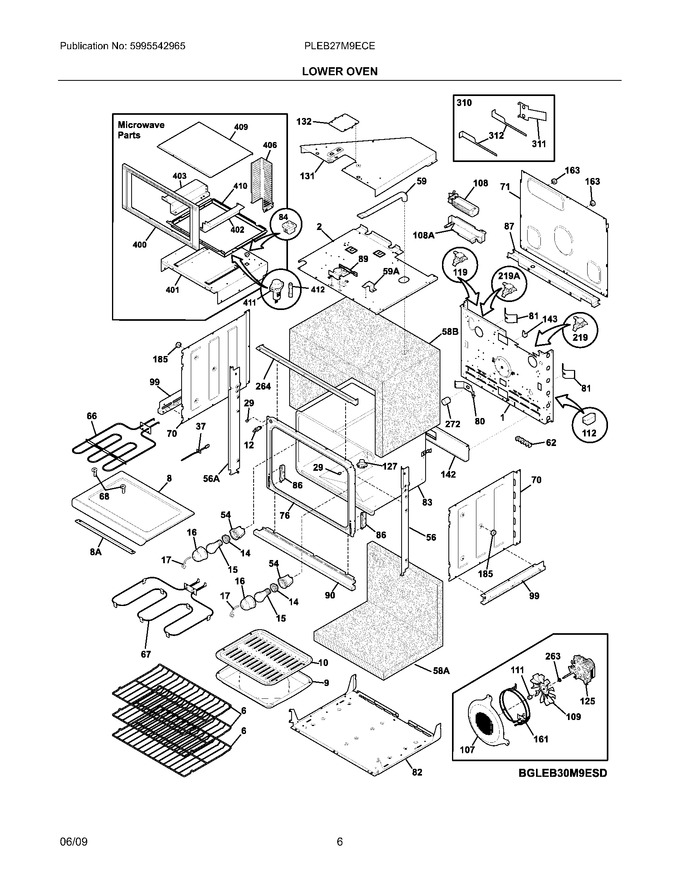

01 - Cover
03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259213 | Back,main |
|
- | |||||
| 2 | 318258910 | Shield,insulation ,upper |
|
- | |||||
| 6 | 318345215 | Rack,oven ,(3) |
|
$ 124.74 | |||||
| 8 | 318262011 | Cover,element |
|
$ 227.06 | |||||
| 9 | 5303317977 | Pan,broileroptional Access0ry |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Panoptional Access0ry |
|
- | |||||
| 12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 29 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 56 | 318276314 | Trim,side Filler ,black ,rh |
|
- | |||||
| 59 | 318072560 | Duct,oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 67 | 318254902 | Element,bake ,2700w ,6 Pass |
|
$ 211.91 | |||||
| 68 | 5304403015 | Support,hanger ,(4) ,broil Element |
|
$ 35.04 | |||||
| 70 | 318259100 | Shield,insulation ,sides ,(2) |
|
$ 63.05 | |||||
| 71 | 318260001 | Panel,rear Box |
|
- | |||||
| 76 | 318056224 | Front,oven |
|
- | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258710 | Shield,insulation ,lower |
|
- | |||||
| 83 | 318261808 | Liner,oven |
|
$ 199.71 | |||||
| 86 | 318561100 | Receptacle,hinge ,(2) |
|
$ 21.23 | |||||
| 87 | 318260601 | Bracket,cable Mtg. |
|
- | |||||
| 90 | 318259835 | Trim,base ,stainless |
|
- | |||||
| 99 | 318256201 | Bracket,side ,bottom ,(2) |
|
$ 56.70 | |||||
| 107 | 318219405 | Cover,fan |
|
$ 82.69 | |||||
| 109 | 318398302 | Fan Blade (Replaces: 318398300) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut-fan Retainer (Replaces: 318399800) |
|
Immediately | $ 19.13 | ||||
| 127 | 318317100 | Adapter Assembly,vent Tube ,w/converter |
|
$ 75.13 | |||||
| 131 | 318272901 | Box,vent |
|
$ 59.01 | |||||
| 132 | 318003000 | Plate,shield |
|
- | |||||
| 142 | 318123910 | Deflector |
|
- | |||||
| 143 | 318172904 | Support,wire |
|
- | |||||
| 163 | 318531703 | Spacer,(4) |
|
- | |||||
| 185 | 318531800 | Spacer,oven Shield ,(2) |
|
$ 12.76 | |||||
| 263 | 316008401 | Washer,flat (Replaces: 316136500) |
|
$ 11.34 | |||||
| 264 | 318257711 | Trim,oven ,black ,front |
|
- | |||||
| 272 | 318249409 | Tube,protector |
|
- | |||||
| 400 | 318275603 | Trim Assembly,microwave ,27`` ,stainless |
|
- | |||||
| 401 | 318297206 | Plate,support ,microwave ,27`` |
|
- | |||||
| 402 | 318276204 | Bracket,base Pad ,rh |
|
- | |||||
| 403 | 318276206 | Bracket,base Pad ,lh |
|
- | |||||
| 406 | 318277201 | Shield,microwave Rear |
|
- | |||||
| 409 | 318295301 | Bracket,top Trim |
|
$ 113.61 | |||||
| 410 | 318297111 | Flue,black |
|
$ 165.17 | |||||
| 56A | 318276315 | Trim,side Filler ,black ,lh |
|
- | |||||
| 58A | 318285060 | Insulation,rear & Bottom ,oven Wrapper |
|
- | |||||
| 58B | 318386110 | Insulation,oven Wrapper |
|
- | |||||
| 59A | 318261600 | Bracket,vent Tube |
|
- | |||||
| 8A | 318318600 | Bracket,element ,hidden Bake |
|
$ 37.17 | |||||
| F108 | 318251300 | Bracket,fan Support |
|
$ 54.60 | |||||
| F108 | 318073028 | Motor,blower |
|
Immediately | $ 271.69 | ||||
| F112 | 318112703 | Relay |
|
$ 66.99 | |||||
| F119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| F125 | 5304463302 | Motor,fan (Replaces: 318398200) |
|
Immediately | $ 259.95 | ||||
| F161 | 318255504 | Element,convection ,350 W |
|
$ 97.07 | |||||
| F219 | 318003614 | Thermostat,safety |
|
Immediately | $ 84.61 | ||||
| F219 | 318003624 | Thermostat,safety ,1.375`` Mtg ,105/120 (Replaces: 318003613) |
|
Immediately | $ 23.39 | ||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F411 | 5304442354 | Holder,fuse |
|
- | |||||
| F412 | 5304442353 | Fuse,20 Amp |
|
- | |||||
| F66 | 318255606 | Element,broil ,3400w (Replaces: 318255601) |
|
Immediately | $ 197.39 | ||||
| F84 | 318146833 | Outlet-electrical,miniature ,black-glossy |
|
$ 106.26 | |||||
| F89 | 318261230 | Motor,latch Assy (Replaces: 318261205) |
|
$ 129.80 | |||||
| FNI | 5304506984 | Box & Wires Assy (Replaces: 318394442) |
|
$ 150.17 | |||||
| FNI | 318532122 | Harness,wiring ,main |
|
- | |||||
| FNI | 318370376 | Wiring Harness,latch |
|
- | |||||
| NI | 5303323136 | Screw-ground |
|
- | |||||
| NI | 5304461333 | Screw,10-32 X 17/32 |
|
Immediately | $ 13.46 | ||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 5303324184 | Screw,8-18 X 5/16 ,black ,(4) |
|
Immediately | $ 14.18 | ||||
| NI | 3201861 | Screw,6 X 0.375 ,(4) |
|
$ 0.76 | |||||
| NI | 5304436875 | Screw,8-18 X 1/2,black |
|
$ 14.41 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 318368501 | Seal,housing ,flat Washer ,lower Oven |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 318268099 | Insulation,oven Light |
|
- |
