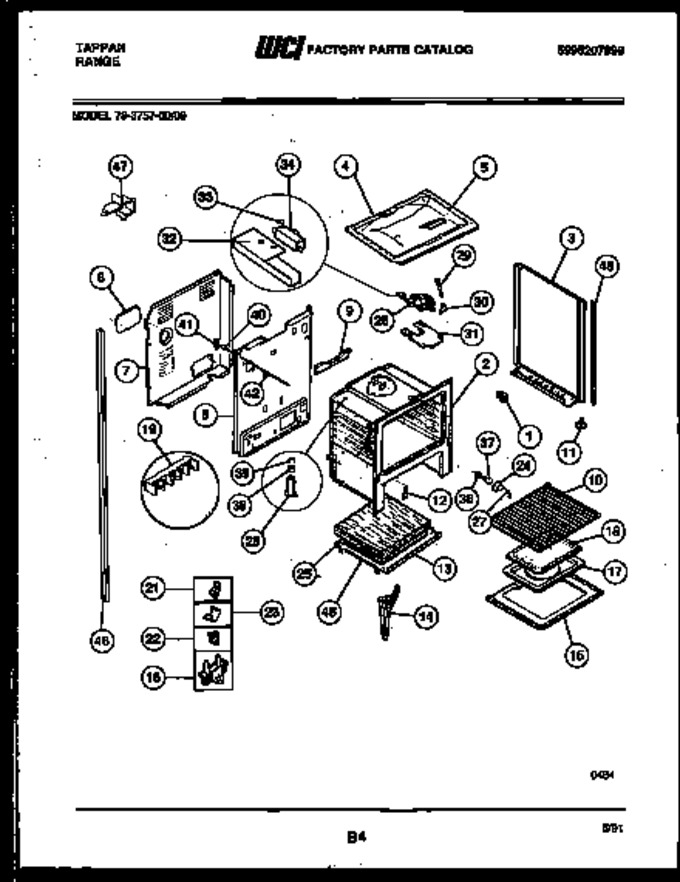

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 4 | 5303271658 | Burner Box |
|
- | |||||
| 5 | 08067757 | Cover Plate |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-lower Wall |
|
- | |||||
| 8 | 3203405 | Cover-lower Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 5303203397 | Screw-level (4) |
|
$ 14.49 | |||||
| 12 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 5303131569 | Chan-door Hinge (2) |
|
- | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 16 | 5303203651 | Fuse-thermo Cutout |
|
$ 77.86 | |||||
| 17 | 5303013568 | Broiler Pan |
|
- | |||||
| 18 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 21 | 08067754 | Clip-thermo Bulb (2) |
|
- | |||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 25 | 3200847 | Insulation, Bottom |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3204585 | Wire Glass Retainer |
|
- | |||||
| 3A | 5303269543 | Panel-bodyside Rh (almond) |
|
- |
