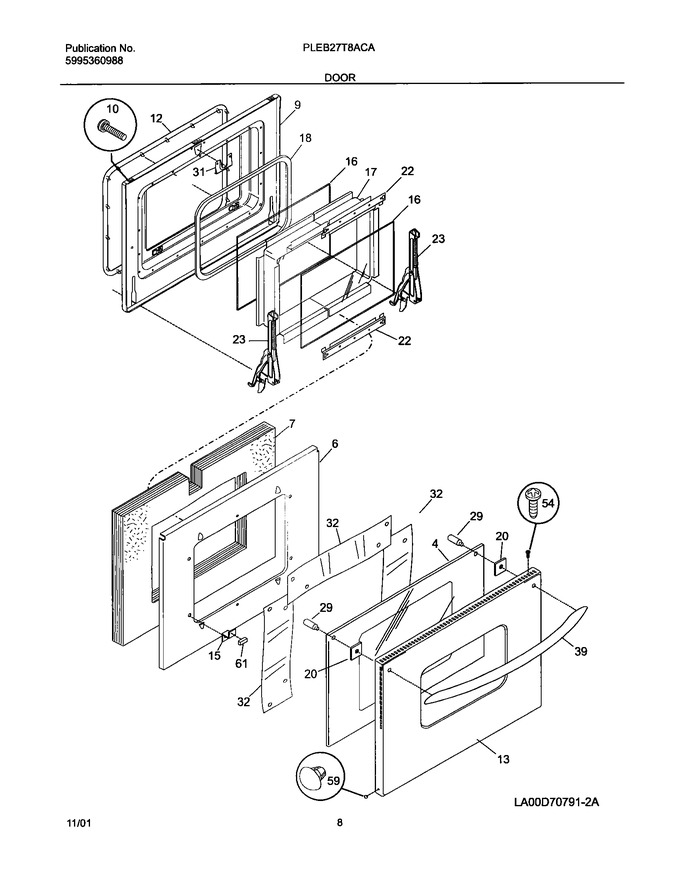

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318210701		Glass,oven Door ,black ,outer		Appelez-nous	-
6	318073500		Shield,air Wash		Appelez-nous	-
7	318133751		Insulation,oven Door		Appelez-nous	-
9	318048501		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	318053100		Seal-oven Door				$ 317.89
13	318009201		Panel,oven Door ,stainless ,exterior		Appelez-nous	-
15	318091101		Bracket-glass, (3)		Appelez-nous	-
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
20	318086020		Spacer-handle,(2)		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303320452		Hinge,oven Door		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
32	318056703		Deflector,4.25`` X 17``		Appelez-nous	-
39	318197900		Handle,oven Door ,stainless		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
59	3202113		Plug,button		Appelez-nous	-
61	5303316982		Foam Seal,(3)		Appelez-nous	-
NI	5303308450		Screw,8 X 0.375		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
