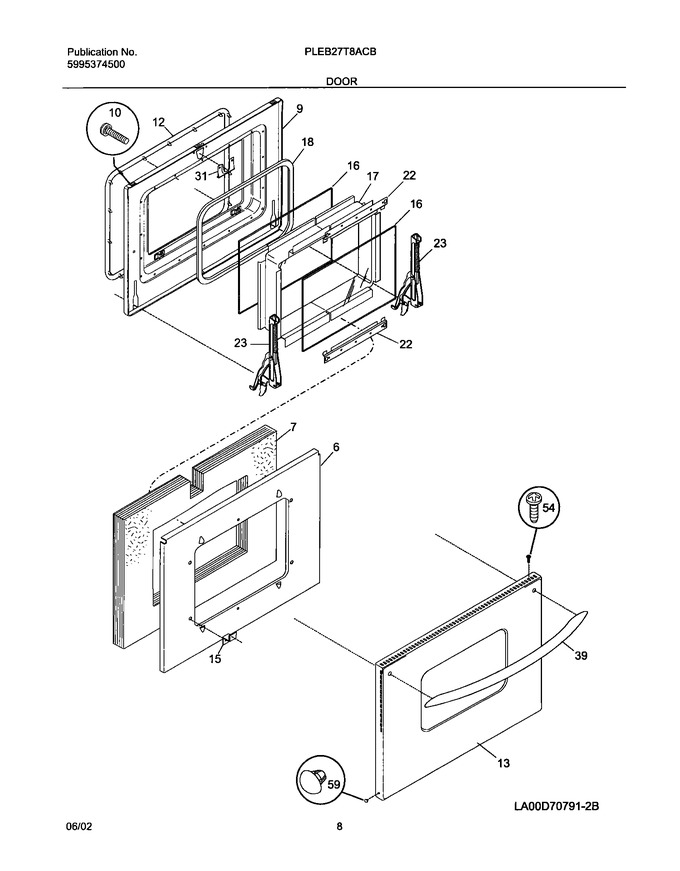

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	318133751		Insulation,oven Door		Appelez-nous	-
9	318156705		Liner,oven Door		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
12	318053100		Seal-oven Door				$ 317.89
13	318187930		Stainless Panel,oven Door ,w/ Glass		Appelez-nous	-
15	318172903		Stiffener,glass		Appelez-nous	-
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303320452		Hinge,oven Door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
39	318197900		Handle,oven Door ,stainless		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
59	3202113		Plug,button		Appelez-nous	-
NI	5303308450		Screw,8 X 0.375		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
