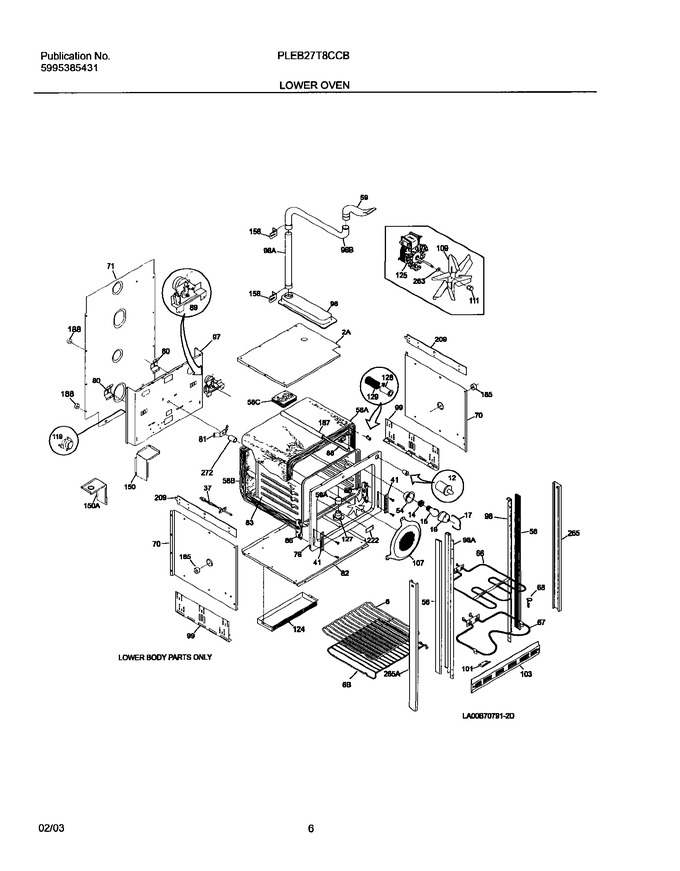

07 - Lower Oven Body


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318025300		Rack,oven		Appelez-nous	-
14	316116400		Receptacle, Oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
56	318145515		Trim-bodyside,(2)		Appelez-nous	-
59	3016331		Tube,oven Vent		Appelez-nous	-
66	5303322963		Element-broil		Appelez-nous	-
68	5304403015		Support,element Hanger				$ 35.04
70	5303300142		Shield-insulation		Appelez-nous	-
71	318071212		Shield,wire		Appelez-nous	-
76	318056104		Front-oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318071801		Shield,oven Bottom		Appelez-nous	-
83	318089524		Liner,oven				$ 220.08
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
96	5303317197		Duct,oven Vent ,assy		Appelez-nous	-
97	318066703		Wrapper,back And Sides		Appelez-nous	-
98	318029310		Trim-side,inner,rh		Appelez-nous	-
99	318055420		Support-adjustable				$ 44.73
101	318039501		Bracket,trim ,black		Appelez-nous	-
103	5303316773		Trim,base ,black ,lower				$ 80.22
107	318219405		Cover,fan   (Replaces: 318219401)				$ 82.69
109	5303311203		Blade,fan				$ 42.84
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
124	318076902		Box-vent		Appelez-nous	-
127	318072801		Adaptor Assy		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
150	318072205		Bracket,support ,lh				$ 72.35
156	5303317198		Bracket-oven Vent		Appelez-nous	-
185	318531800		Spacer-oven Shield   (Replaces: 318014700)				$ 12.76
187	318013501		Tube,latch Rod		Appelez-nous	-
188	318531702		Spacer   (Replaces: 318014110)				$ 9.93
209	318086210		Plate,retainer		Appelez-nous	-
222	318080000		Plate,oven Temp Probe		Appelez-nous	-
263	316008401		Washer,fan Motor   (Replaces: 316136500)				$ 11.34
265	318029502		Trim,bodyside ,stainless ,outer,rh		Appelez-nous	-
272	5303311207		Tube, Protector		Appelez-nous	-
2A	318071502		Shield,oven Top		Appelez-nous	-
58A	318133758		Insulation,oven Wrapper		Appelez-nous	-
58B	318133749		Insulation,oven Back		Appelez-nous	-
58C	5303316994		Insulation		Appelez-nous	-
59A	5303320844		Tube,oven Vent		Appelez-nous	-
6B	318025200		Shelf,oven		Appelez-nous	-
96A	3016325		Duct,oven Vent ,center		Appelez-nous	-
96B	3016327		Duct-vent Pipe		Appelez-nous	-
98A	318029311		Trim-side,inner,lh		Appelez-nous	-
F119	318004900		Switch,thermal				$ 60.25
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 44.23
F125	318142100		Washer,motor ,convection				$ 12.39
F125	5303311202		Motor-convection				$ 114.07
F150	318072204		Bracket,support ,rh		Appelez-nous	-
F265	318029503		Trim-bodyside,stainless ,outer,lh		Appelez-nous	-
F37	316217002		Sensor,oven Temp Probe   (Replaces: 316111203)			Immediately	$ 61.23
F67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
F89	318095956		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095934)			Immediately	$ 143.83
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318120711		Switch				$ 87.68
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
