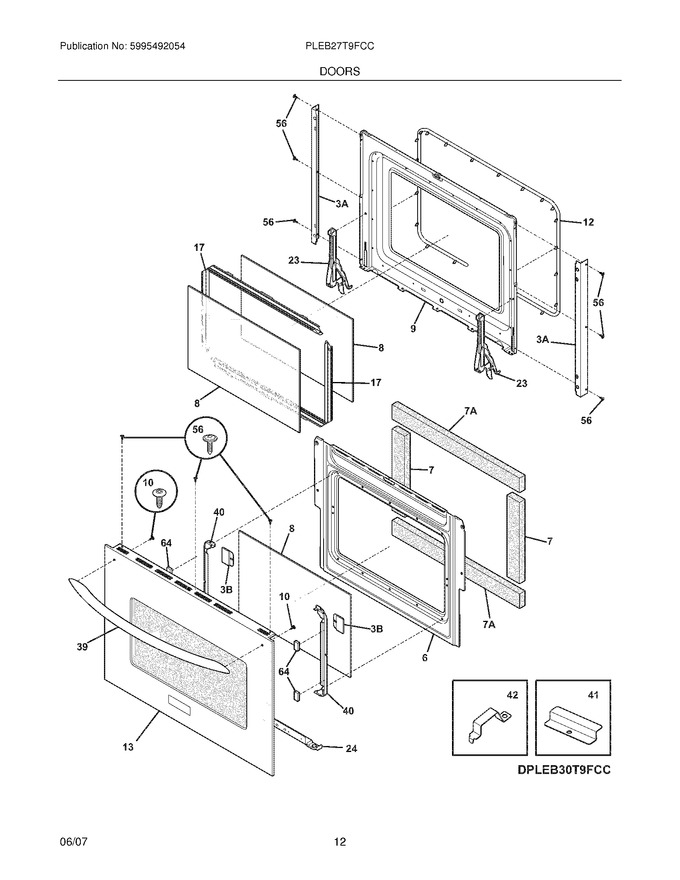

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260510		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318259615		Liner,upper Door		Appelez-nous	-
10	5303325980		Screw,10-32 X 0.437				$ 12.76
12	318053135		Seal,oven Door ,upper		Appelez-nous	-
13	318272110		Door Assy,w/nameplate ,stainless Steel ,lower Door,w/tape & Foil		Appelez-nous	-
13	318272109		Door Assy,glass ,stainless Steel ,upper Door,w/tape & Foil		Appelez-nous	-
17	318264700		Spacer,glass ,(2)		Appelez-nous	-
23	318024722		Hinge,door ,upper ,(2)		Appelez-nous	-
24	318260311		Trim,door ,black ,lower		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219805)				$ 145.31
40	318242702		Bracket,glass Holder ,upper Door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
3B	318262104		Cover,rear Door ,black ,(2)   (Replaces: 318262101)				$ 24.99
7A	318372001		Insulation,door ,20.5 X 2.375 ,(2)		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303323277		Screw (8-18x13/32)				$ 8.66
