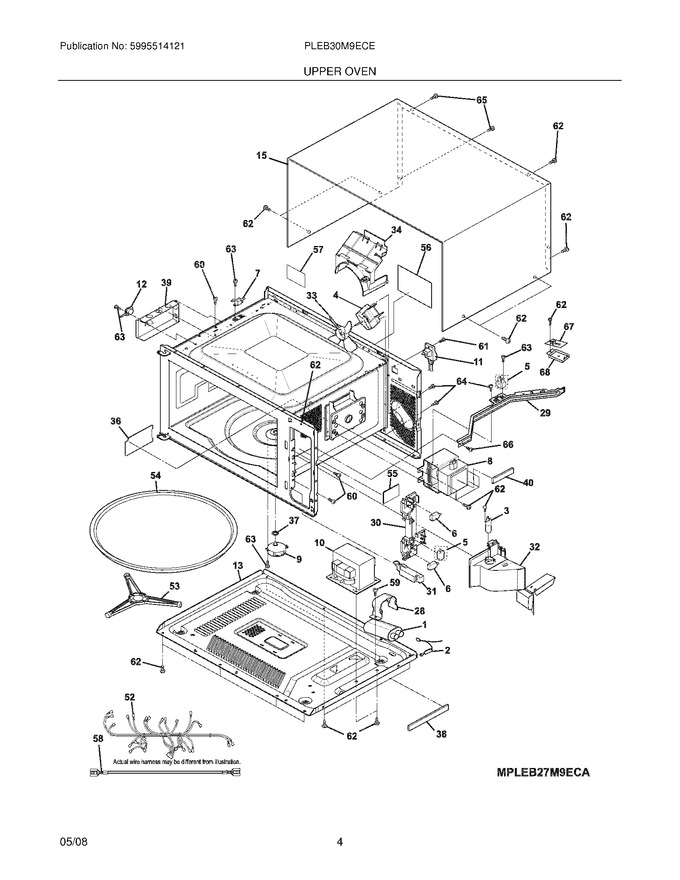

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303319559		Switch,monitor ,w/ceramic Fuse				$ 85.43
13	5304440814		Base,unit Chassis				$ 105.26
15	5304440816		Cabinet,outer Casing ,black				$ 205.20
28	5304440838		Retainer,capacitor Strap				$ 8.77
29	5304440839		Bracket,chassis Support		Appelez-nous	-
30	5304503439		Latch Hook   (Replaces: 5304440840)			Immediately	$ 60.62
31	5304485407		Lever,door Release   (Replaces: 5304440841)				$ 63.36
32	5304440842		Duct,magnetron		Appelez-nous	-
34	5304440844		Duct,cooling Fan		Appelez-nous	-
36	5304440845		Cover,waveguide				$ 108.96
37	5304440288		Bushing,motor Shaft ,turntable				$ 16.45
38	5304441909		Cushion,base Plate Pad		Appelez-nous	-
39	5304440847		Duct,ah Sensor		Appelez-nous	-
40	5304441910		Cushion,magnetron Pad		Appelez-nous	-
52	5304452260		Wiring Harness,main		Appelez-nous	-
53	5304467717		Support Assy,turntable   (Replaces: 5304440284)				$ 122.18
54	5304529482		Tray,turntable ,glass   (Replaces: 5304440868)				$ 108.44
55	5304440334		Label,caution-monitor		Appelez-nous	-
56	5304440333		Label,caution-dhhs		Appelez-nous	-
57	5304453941		Label,caution ,ul Screw		Appelez-nous	-
59	5303319636		Screw		Appelez-nous	-
60	5303319641		Screw				$ 12.76
61	5304440871		Screw,4mm X 12mm ,ground		Appelez-nous	-
62	5304452261		Screw,black ,outer Casing		Appelez-nous	-
62	5304440340		Screw,4mm X 12mm		Appelez-nous	-
63	5303319633		Screw,3mm X 8mm		Appelez-nous	-
64	5304440872		Screw,4mm X 8mm		Appelez-nous	-
65	5304440873		Screw,torx ,t20h/gtxh20-100				$ 11.34
66	5304440874		Screw		Appelez-nous	-
68	5303322975		Bracket,noise Filter ,angle				$ 17.43
F1	5304487566		Capacitor,high Voltage   (Replaces: 5304440777)			Immediately	$ 122.62
F10	5304440783		Transformer,power		Appelez-nous	-
F11	5304440784		Power Cord,electric				$ 120.49
F12	5304440785		Sensor,humidity ,cook Control				$ 56.18
F2	5304468869		Rectifier,high Voltage   (Replaces: 5304440778)				$ 92.14
F3	5304500304		Lamp Assy,with Socket   (Replaces: 5304440779)				$ 63.79
F33	5304440843		Fan Blade,cooling Fan				$ 37.75
F4	5304493152		Motor,cooling Fan   (Replaces: 5304448490)				$ 87.43
F58	5304440870		Wire,high Voltage-a		Appelez-nous	-
F6	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F67	5304492543		Filter,noise ,electronic   (Replaces: 5304451818)				$ 81.18
F7	5304440780		Fuse,cavity Temp ,20 Amp ,250 V				$ 85.76
F8	5304521745		Magnetron   (Replaces: 5304440781)				$ 189.05
F9	5304448832		Motor,turntable			Immediately	$ 74.09
